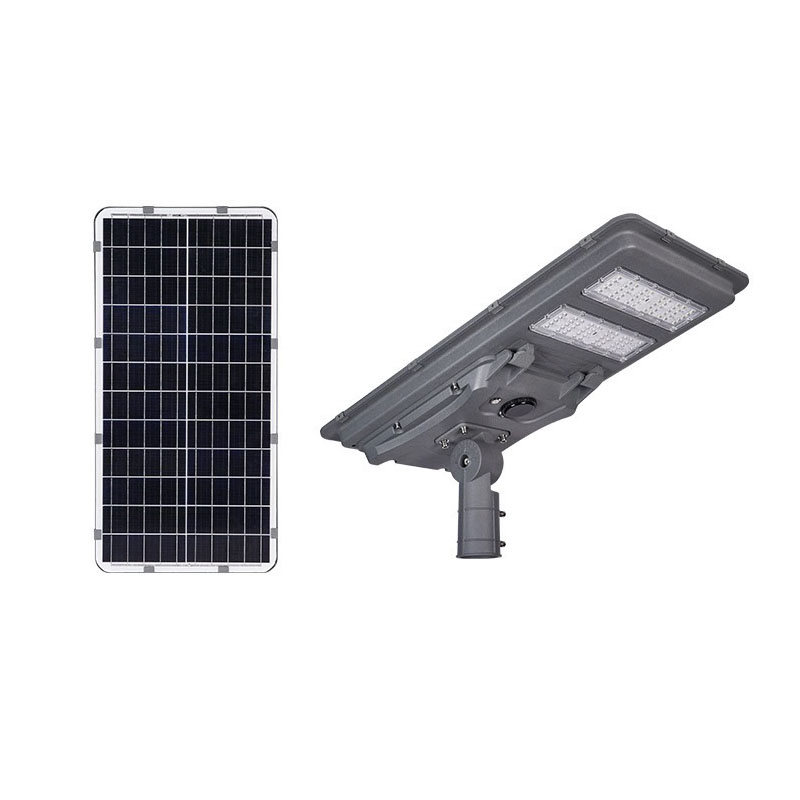

Human Motion Sensor Solar Street Light
Human Motion Sensor Solar Street Light

Human Motion Sensor Solar Street Light

This smart human motion sensor solar street light designed for streets, pathways, gardens, and public areas.

CATEGORY:
Description

Features:

Motion-Activated Full Brightness:

Equipped with PIR (Passive Infrared) sensors or microwave radar, the light detects human movement within a range of 5–10 meters.

Automatically switches to full brightness when motion is detected, ensuring optimal visibility and safety.

Dim Mode When Inactive:

After a preset delay (e.g., 30 seconds to 5 minutes) with no detected movement, the light dims to 10%–30% brightness to conserve energy while maintaining minimal illumination.

Solar-Powered Efficiency:

Powered by high-efficiency monocrystalline solar panels (45W–100W) and lithium iron phosphate batteries, ensuring reliable operation even during cloudy days or low-light conditions.

Durable & Weatherproof Design:

Constructed with aluminum alloy housing for superior heat dissipation and corrosion resistance.

Rated IP65 waterproof, making it suitable for harsh weather conditions (-20°C to 60°C).

Applications:

Streets & Pathways: Provides energy-efficient lighting for urban and rural roads.

Residential Areas: Enhances security for driveways, gates, and courtyards.

Commercial Spaces: Ideal for parking lots, warehouses, and building perimeters.

Public Infrastructure: Parks, campuses, and scenic trails.

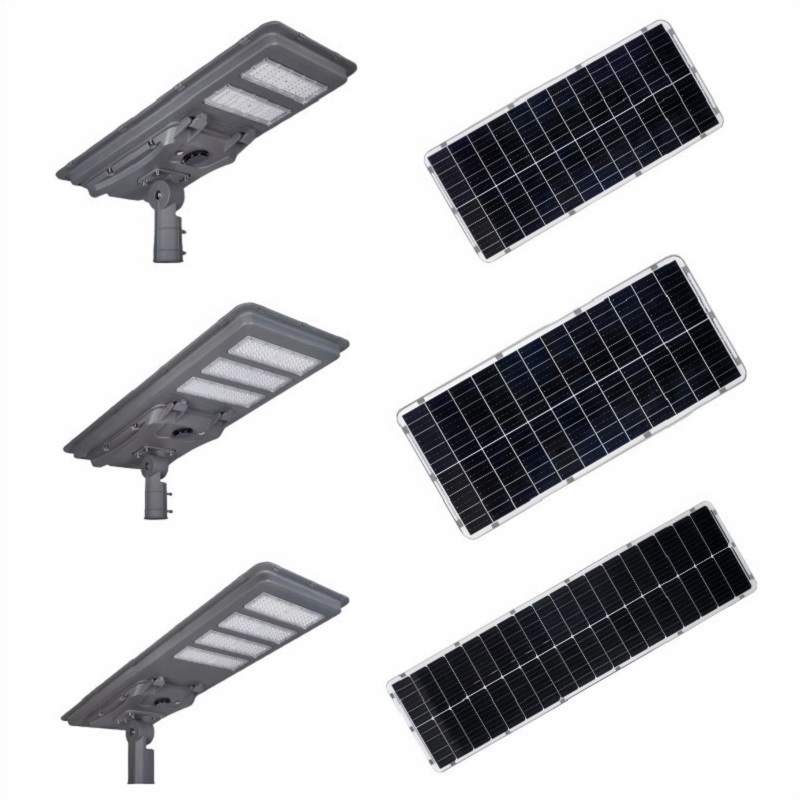

Specifications:

TSL-ST100

  • Solar panel power: 45W
  • Battery capacity: 40AH
  • Solar panel size: 692 * 345 mm
  • Shell size: 700 * 350 * 150 mm
  • Shell material: Metal
  • Protection level: IP65

TSL-ST150

  • Solar panel power: 60W
  • Battery capacity: 60AH
  • Solar panel size: 885 * 398 mm
  • Shell size: 887 * 400 * 280 mm
  • Shell material: Metal
  • Protection level: IP65

TSL-ST200

  • Solar panel power: 80W
  • Battery capacity: 80AH
  • Solar panel size: 1157 * 398 mm
  • Shell size: 1160 * 400 * 280 mm
  • Shell material: Metal
  • Protection level: IP65

TSL-ST300

  • Solar panel power: 100W
  • Battery capacity: 100AH
  • Solar panel size: 1433 * 398 mm
  • Shell size: 1435 * 400 * 280 mm
  • Shell material: Metal
  • Protection level: IP65
