ST5015kWh-2500kW-2h Energy Storage System
ST5015kWh-2500kW-2h / ST5015kWh-1250kW-4h PowerTitan liquid-cooled C&I energy storage system with pre-assembled deployment, optimized thermal efficiency, multi-tiered safety isolation, and automated O&M for cost-effective, high-performance energy management.
ST5015kWh-2500kW-2h / ST5015kWh-1250kW-4h

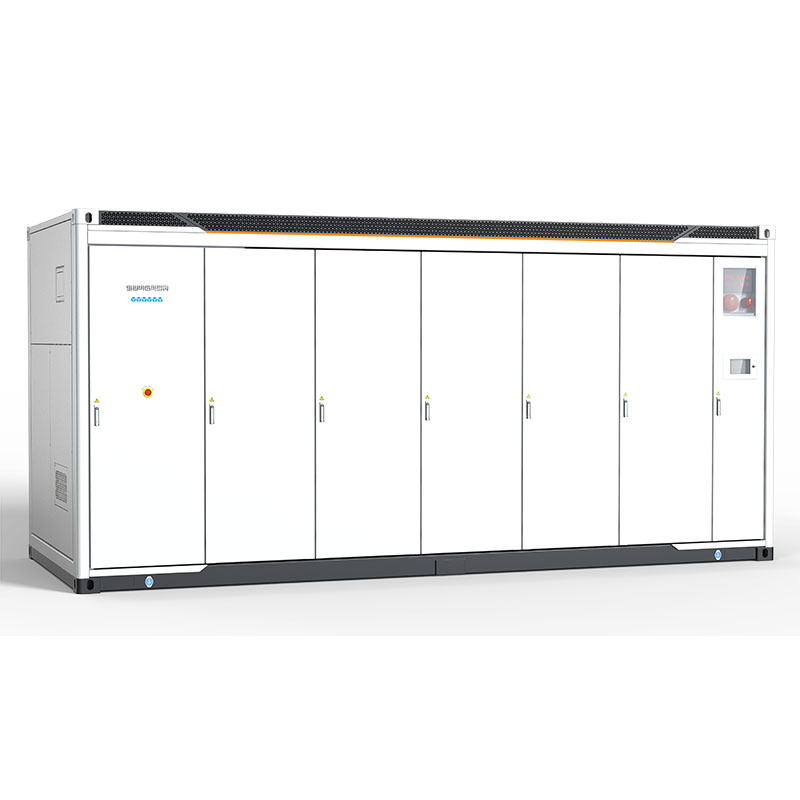

PowerTitan 2.0 Liquid Cooled Energy Storage System
Cost Efficiency: AI-driven liquid cooling reduces auxiliary power consumption; pre-assembled units eliminate on-site module handling.
High Performance: Advanced thermal management extends battery lifespan and discharge capacity, front-access design supports space-saving back-to-back layouts.
Safety Assurance: Multi-layered electrical protection (instant overcurrent cutoff, arc suppression) + isolated battery/electrical cabinets to block thermal runaway.
Smart O&M: Automated coolant refilling, one-click remote upgrades, and real-time cloud-based diagnostics for predictive maintenance.
Type DesignationST5015kWh-2500kW-2hST5015kWh-1250kW-4h
DC side
- Cell typeLFP 3.2 V / 314 Ah
- System battery configuration416S12P
- Nominal capacity5015 kWh
- Nominal voltage range1123.2 V - 1497.6 V
AC side
- Nominal power210 kVA * 12210 kVA * 6
- AC current distortion rate< 3 % ( Nominal Power )
- DC component< 0.5 %
- Nominal AC voltage690 V
- AC voltage range621 V - 759 V
- Termination (LV)352 A * 3 Phase * 6352 A * 3 Phase * 3
- Power factor0.99 ( Nominal Power )
- Adjustable range of reactive power- 100 % - 100 %
- Nominal frequency50 Hz
- Isolation methodTransformerless
System parameter
- Dimensions ( W * H * D )6058 mm * 2896 mm * 2438 mm
- Weight4.25T4.2T
- Degree of protectionIP55
- Anti-corrosion degreeC3
- Operation Ambient Temperature Range﹣30 ℃ - 50 ℃ ( > 45 ℃ Derating )
- Operation humidity range0 % - 100 % ( Non-condensing )
- Max. operating altitude4000 m
- Temperature Control MethodIntelligent Liquid Cooling
- Fire suppression systemFACP, FK5112, Flammable gas detector, Smoke detector, Heat detector, Sounder beacon, Alarm bell, War ning sign, Extinguishant abort button, Ventilation system, Pressure relief port, Manual automatic switching and emergency starting device(Default), Sprinkler, Vent panel, Aerosol ( Optional )
- CommunicationEthernet
- StandardIEC61000, IEC62619, IEC62933, AS3000, UKCA, G99, UN38.3/UN3536, CE, IEC62477
