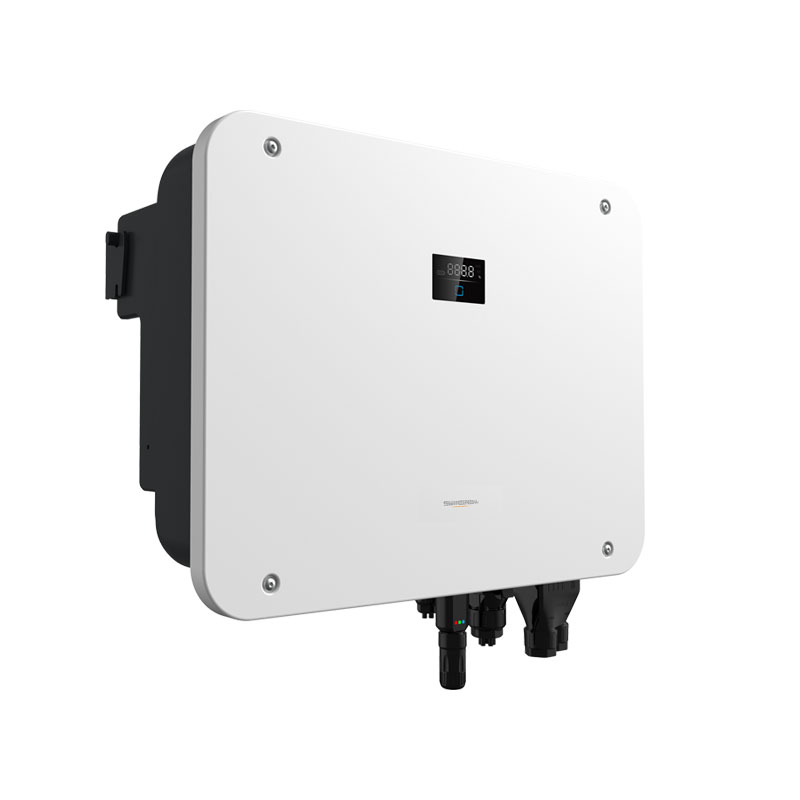

15KW-25KW Residential 3-Phase Hybrid Inverter
15-25kW 3-Phase Hybrid Solar Inverter with full-home backup, 63A bypass, 10ms switching, 36.5kVA peak, 100% unbalanced load, 50A charge/discharge, and IP65/C5 protection. Plug & Play installation.
15kW 20KW 25kW Residential 3-Phase Hybrid Inverter
Full Home Backup
Built-in 63A bypass for whole-home backup.
10ms seamless switching for uninterrupted power.
Peak output up to 36,500VA (10s) in backup mode (SH25T model).
Flexible Application
Supports 100% unbalanced output (backup & grid-tied modes).
Max. 16A DC input current per string.
50A fast charge/discharge current for high-efficiency energy management.
Easy Installation
Plug-and-play setup for quick deployment.
Quiet operation (suitable for indoor/outdoor installation).
Safety & Durability
Precise AFCI (Arc Fault Circuit Interruption) for enhanced safety.
Robust IP65/C5-rated enclosure (weatherproof and corrosion-resistant).
Type DesignationSH15TSH20TSH25T
Input ( DC )
- Recommended max. PV input power30 kWp40 kWp50 kWp
- Max. PV input voltager1000 V
- Min. operating PV voltage / Start-up input voltage150 V / 180 V
- Rated PV input voltage600 V
- MPPT operating voltage range150 V - 950 V
- No. of independent MPP trackers3
- No. of PV strings per MPPT2 / 2 / 1
- Max. PV input current80 A ( 32 A / 32 A / 16 A )
- Max. DC short-circuit current100 A ( 40 A / 40 A / 20 A )
- Max. current for input connector30 A
Battery data
- Battery typeLi-ion battery
- Battery voltage range100 V - 700 V
- Max. charge / discharge current50 A / 50 A
- Max. charge / discharge power30 KW / 15 KW30 KW / 20 KW30 KW / 25 KW
Input / output (AC)
- Max. AC power from grid43 KVA
- Rated AC output power15 KW20 KW25 KW
- Max. AC output apparent power15 KVA20 KVA25 KVA
- Max. AC output current22.8 A30.4 A37.9 A
- Rated AC voltage3 / N / PE, 220 V / 380 V ; 230 V / 400 V; 240 V / 415 V
- AC voltage range270 V - 480 V
- Rated grid frequency / Grid frequency range50 Hz / 45 - 55 Hz, 60 Hz / 55 - 65 Hz
- Harmonic ( THD )< 3 % ( at rated power )
- Power factor at rated power / Adjustable power factor>0.99 at default value at rated power
- Feed-in phases / Connection phases3 / 3-N-PE
- Max. efficiency / European efficiency98.1 % / 97.6 %98.2 % / 97.8 %
Backup data (on grid mode)
- Max. output power for backup load43 KW
- Max. output current for backup load3 * 63 A
Backup data (off grid mode)
- Rated voltage3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V ( ± 2 % )
- Rated frequency50 Hz / 60 Hz ( ± 0.2 % )
- THDV(@Linear load)< 2 %
- Backup switch time< 10 ms
- Rated output power15 KW / 15 KVA20 KW / 20 KVA25 KW / 25 KVA
- Peak output power25.5 KW /25.5 KVA ,10 s32 KW / 32 KVA ,10 s36.5 KW / 36.5 KVA ,10 s
Protection & Function
- Grid monitoringYes
- DC reverse polarity protectionYes
- AC short-circuit protectionYes
- Leakage current protectionYes
- DC switch (solar)Yes
- Surge ProtectionDC type II / AC type II
- PID Zero functionYes
- Battery input reverse polarity protectionYes
General Data
- Dimensions ( W * H * D )620 mm * 480 mm * 245 mm
- Weight38 kg40 kg
- Mounting methodWall-mounting bracket
- Degree of protectionIP65
- Topology (Solar / Battery)Transformerless
- Operating ambient temperature range-25 ℃ to 60 ℃
- Allowable relative humidity range ( non-condensing )0 % - 100 %
- Cooling methodNatural convectionFan cooling
- Max. operating altitude2000 m
- Noise(Typical)35 dB ( A )50 dB ( A )
- DisplayLED
- CommunicationRS485, WLAN, Ethernet, CAN
- DI / DODI * 4 / DO * 2 / DRM0
- DC connection typeMC4 compatible connector ( PV,Max.6 mm² ) /Plug and play connector ( battery, Max.10 mm² )
- AC connection typePlug and play connector ( Max.16 mm² )
- Grid complianceIEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11, VDE-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21
