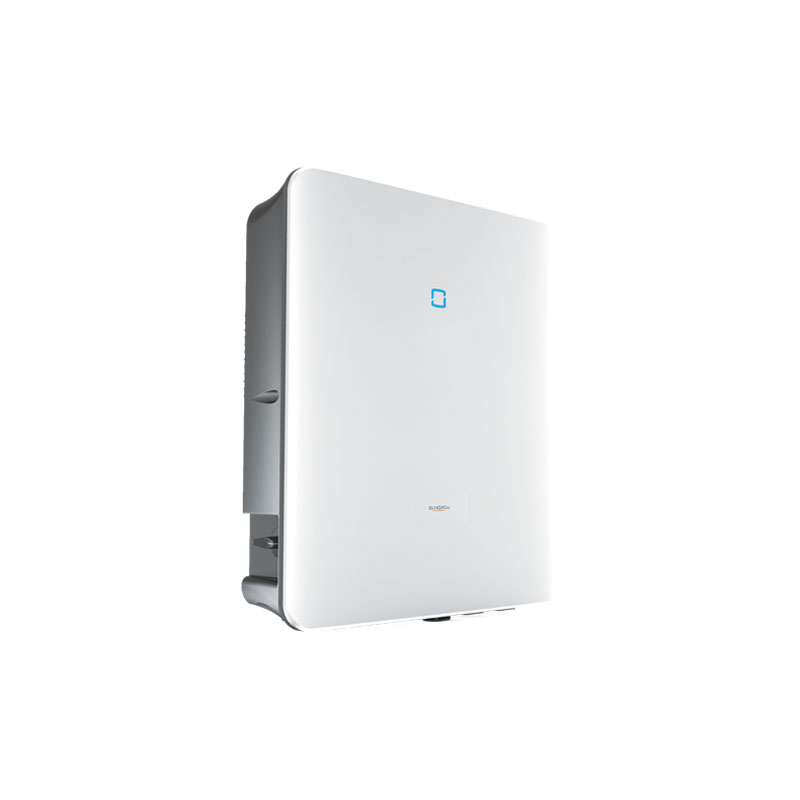

5KW-10KW Residential Hybrid Three Phase Inverter
5KW-10KW Residential Hybrid Three Phase Inverter

5KW-10KW Residential Hybrid Three Phase Inverter

5kW-10kW residential hybrid 3-phase solar inverter with 150-600V battery range, parallel capability, smart EMS, real-time monitoring, and quick-install push connectors for energy independence.

CATEGORY:
Description

5kW 6KW 8KW 10kW Residential Hybrid Three Phase Inverter

Versatile Application

Wide Battery Compatibility: Supports 150–600V battery voltage range for flexible energy storage integration.

Scalable Power: Enables parallel inverter connection with full communication for expanded capacity.

Unbalanced Load Handling: Delivers 100% unbalanced load support in backup mode for reliable power distribution.

Energy Independence & Reliability

Seamless Backup Transition: Instant switch to backup mode during grid outages for uninterrupted power.

High-Speed Energy Transfer: Rapid charge/discharge capability to meet peak demand and energy trading needs.

Intelligent Energy Management

Optimized Self-Consumption: Built-in Energy Management System (EMS) maximizes solar utilization.

Real-Time Monitoring: Free online platform for users, installers, and retailers to track performance.

Remote Control: Customizable settings and over-the-air firmware updates for hassle-free maintenance.

Quick & Easy Installation

Tool-Free Wiring: Push-in connectors reduce installation time.

Smartphone Commissioning: Touch-free setup via mobile app.

Compact & Lightweight: Space-saving design for effortless deployment.


Type DesignationSH5.0RT-20SH6.0RT-20

Input ( DC )

  • Recommended max. PV input power7.5 kWp9.0 kWp
  • Max. PV input voltager1000 V
  • Min. operating PV voltage / Startup input voltage150 V / 180 V200 V / 250 V
  • Rated PV input voltage600 V
  • MPPT operating voltage range150 V – 950 V200 V – 950 V
  • No. of independent MPP inputs2
  • No. of PV strings per MPPT1 / 1
  • Max. PV input current27 A (13.5 A / 13.5 A)
  • Max. DC short-circuit current36 A (18 A / 18 A)
  • Max. current for input connector30 A

Battery data

  • Battery typeLi-ion battery
  • Battery voltage range150 V - 600 V
  • Max. charge / discharge current30 A / 30 A
  • Max. charge / discharge power7.5 KW / 6 KW9 KW / 7.2 KW

Input / output (AC)

  • Max. AC power from grid12.5 KW15 KW
  • Rated AC output power5 KW6 KW
  • Max. AC output apparent power5 KVA6 KVA
  • Max. AC output current7.6 A9.1 A
  • Rated AC voltage3 / N / PE, 220 V / 380 V; 230 V / 400 V; 240 V / 415 V
  • AC voltage range270 V - 480 V
  • Rated grid frequency / Grid frequency range50 Hz / 45 - 55 Hz
  • Harmonic ( THD )< 3 % ( at rated power )
  • Power factor at rated power / Adjustable power factor>0.99 at default value at rated power
  • Feed-in phases / Connection phases3 / 3
  • Max. efficiency / European efficiency98 % / 97.2 %98.2 % / 97.5 %

Backup data (on grid mode)

  • Max. output power for backup load16.5 KW
  • Max. output current for backup load3 * 25 A

Backup data (off grid mode)

  • Rated voltage3 / N / PE, 220Vac / 230Vac / 240Vac
  • Rated frequency50 Hz
  • THDV(@Linear load)< 2 %
  • Backup switch time< 20 ms
  • Rated output power5 KW / 5 KVA6 KW / 6 KVA
  • Peak output power6 KW / 6 KVA, 5min 10 KW / 10 KVA, 10s7.2 KW / 7.2 KVA, 5min 10 KW / 10 KVA, 10s
  • Peak output power on single phase2 KVA (≥9.6kWh)2.2 KVA (≥12.8kWh)
  • Rated output current for backup load3 * 18.5 A

Type DesignationSH8.0RT-20SH10RT-20

Input ( DC )

  • Recommended max. PV input power12 kWp15 kWp
  • Max. PV input voltager1000 V
  • Min. operating PV voltage / Startup input voltage200 V / 250 V
  • Rated PV input voltage600 V
  • MPPT operating voltage range200 V – 950 V
  • No. of independent MPP inputs2
  • No. of PV strings per MPPT1 / 11 / 2
  • Max. PV input current27 A (13.5 A / 13.5 A)40.5 A (13.5 A / 27 A)
  • Max. DC short-circuit current36 A (18 A / 18 A)54 A (18 A / 36 A)
  • Max. current for input connector30 A

Battery data

  • Battery typeLi-ion battery
  • Battery voltage range150 V - 600 V
  • Max. charge / discharge current30 A / 30 A
  • Max. charge / discharge power10.6 KW / 10.6 KW

Input / output (AC)

  • Max. AC power from grid18.6 KW20.6 KW
  • Rated AC output power8 KW10 KW
  • Max. AC output apparent power8 KVA10 KVA
  • Max. AC output current12.1 A15.2 A
  • Rated AC voltage3 / N / PE, 220 V / 380 V; 230 V / 400 V
  • AC voltage range270 V - 480 V
  • Rated grid frequency / Grid frequency range50 Hz / 45 - 55 Hz
  • Harmonic ( THD )< 3 % ( at rated power )
  • Power factor at rated power / Adjustable power factor>0.99 at default value at rated power
  • Feed-in phases / Connection phases3 / 3
  • Max. efficiency / European efficiency98.4 % / 97.9 %98.4 % / 97.9 %

Backup data (on grid mode)

  • Max. output power for backup load16.5 KW
  • Max. output current for backup load3 * 25 A

Backup data (off grid mode)

  • Rated voltage3 / N / PE, 220Vac / 230Vac / 240Vac
  • Rated frequency50 Hz
  • THDV(@Linear load)< 2 %
  • Backup switch time< 20 ms
  • Rated output power8 KW / 8 KVA10 KW / 10 KVA
  • Peak output power12 KW / 12 KVA, 5min12 KW / 12 KVA, 5min
  • Peak output power on single phase2.7 KVA (≥12.8kWh)3.4 KVA (≥12.8kWh)
  • Rated output current for backup load3 * 18.5 A

Protection & Function

  • Grid monitoringYes
  • DC reverse polarity protectionYes
  • AC short-circuit protectionYes
  • Leakage current protectionYes
  • DC switch (solar)Yes
  • DC overcurrent protection (Battery)Yes
  • Surge ProtectionDC type II / AC type II
  • Parallel operation on grid port / Max. No of invertersMaster-slave mode / 5
  • Battery input reverse polarity protectionYes

General Data

  • Dimensions ( W * H * D )460 mm * 540 mm * 170 mm
  • Weight27 kg
  • Mounting methodWall-mounting bracket
  • Degree of protectionIP65
  • Topology (Solar / Battery)Transformerless
  • Operating ambient temperature range-25 ℃ to 60 ℃
  • Allowable relative humidity range ( non-condensing )0 % - 100 %
  • Cooling methodNatural cooling
  • Noise (Typical)30 dB ( A )
  • Max. operating altitude4000 m
  • DisplayLED
  • CommunicationS485, WLAN, Ethernet, CAN, 4 × DI, 1 × DO
  • DI / DODI * 4 / DO * 1 / DRM
  • DC connection typeMC4 (PV, Max.6mm²) / Evo2 Compatible (Battery, Max.6mm²)
  • AC connection typePlug and play connector (Grid Max.10mm², Backup Max.6mm²)
  • Grid complianceIEC / EN 62109-1/-2, IEC / EN 61000-6-1/2/3/4, EN 62477-1, IEC 61727, IEC 62116, IEC 61683, VDE-AR-N-4105, AS/NZS 4777.2:2020, EN50549-1, NRS 097-2-1, TOR Generator Type A, OVE-Richtlinie R25, NC RfG PTPiREE,PSE 2018, EIFS 2018:2, PPDS4, NTS 631 V2.0, UNE217002, RD 1699, CEI 0-21
