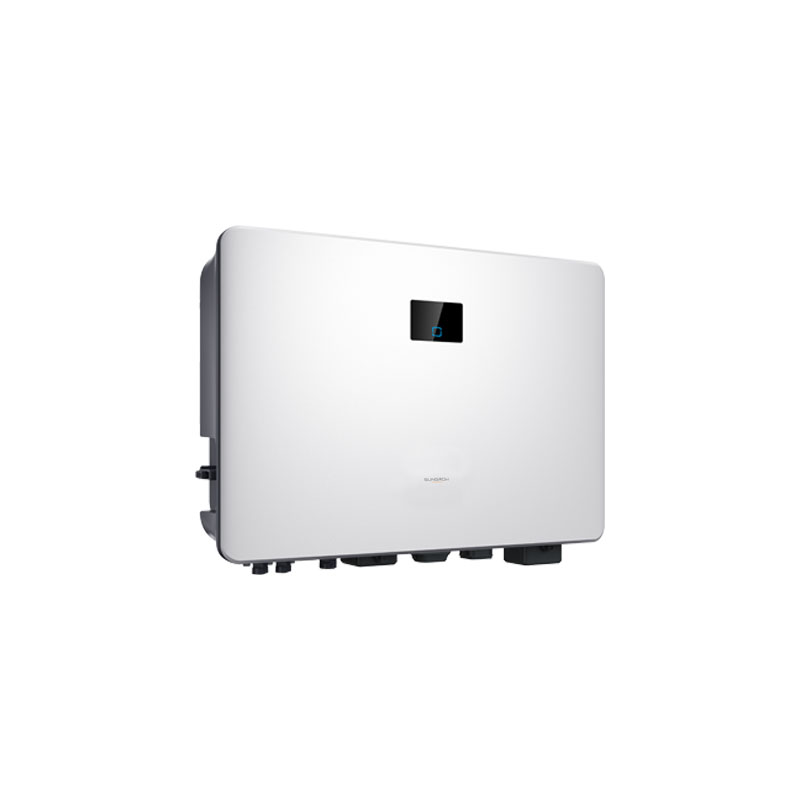

3KW-6KW Residential Hybrid Single Phase Inverter
3KW-6KW Residential Hybrid Single Phase Inverter

3KW-6KW Residential Hybrid Single Phase Inverter

Smart 3-6kW hybrid inverter with wide battery compatibility (80-460V), instant backup power, and iSolarCloud monitoring compact, self consumption optimized.

CATEGORY:
Description

3kW-6kW Residential Hybrid Single-Phase Inverter

Flexible Application

Wide Battery Compatibility: Supports 80–460V battery voltage range for versatile energy storage integration.

Retrofit & New Installations: Ideal for both existing system upgrades and new setups.

Smart PID Recovery: Built-in function to mitigate potential-induced degradation (PID) in solar panels.

Energy Independence

Seamless Backup Mode: Instant switch to battery power during grid outages for uninterrupted supply.

Rapid Charge/Discharge: High-efficiency charging and discharging to maximize self-consumption.

Advanced EMS: Embedded Energy Management System with customizable operation modes.

User-Friendly Setup

Plug-and-Play Installation: Simplified setup for hassle-free deployment.

Remote Monitoring: Real-time tracking via iSolarCloud App and Web Portal.

Compact & Efficient Design: Lightweight, space-saving, and optimized thermal management.

Smart Management

Real-Time Data: 10-second refresh rate for precise system performance tracking.

24/7 Monitoring: Live status updates via online platform or integrated display.

Proactive Diagnostics: Online IV curve scanning and fault detection for maintenance.


Type DesignationSH3.0RSSH3.6RSSH4.0RS

Input ( DC )

  • Recommended max. PV input power4.5 kWp5.4 kWp6 kWp
  • Max. PV input voltager600 V
  • Min. operating PV voltage / Start-up input voltage40 V / 50 V
  • Rated PV input voltage360 V
  • MPP voltage range40 V – 560 V
  • No. of independent MPP inputs2
  • No. of PV strings per MPPT1 / 1
  • Max. PV input current32 A ( 16 A / 16 A )
  • Max. DC short-circuit current40 A ( 20 A / 20 A )
  • Max. current for input connector20 A

Battery data

  • Battery typeLi-ion battery
  • Battery voltage range80 V - 460 V
  • Max. charge / discharge current30 A / 30 A
  • Max. charge / discharge power6.6 KW

Input / output (AC)

  • Max. AC power from grid10 KVA10.7 KVA11 KVA
  • Rated AC output power3 KW3.68 KW4 KW
  • Max. AC output apparent power3 KVA3.68 KVA4 KVA
  • Max. AC output current13.7 A16 A18.2 A
  • Rated AC voltage220 V / 230 V / 240 V
  • AC voltage range154 V - 276 V
  • Rated grid frequency / Grid frequency range50 Hz / 45 - 55 Hz, 60 Hz / 55 - 65 Hz
  • Harmonic ( THD )< 3 % ( at rated power )
  • Power factor at rated power / Adjustable power factor>0.99 at default value at rated power
  • Feed-in phases / Connection phases1 / 1
  • Max. efficiency / European efficiency97.4 % / 97.0 %97.5 % / 97.1 %97.6 % / 97.2 %

Backup data (on grid mode)

  • Max. output power for backup load6 KW
  • Max. output current for backup load27.3 A

Backup data (off grid mode)

  • Rated voltage220 V / 230 V / 240 V ( ± 2 % )
  • Rated frequency50 Hz / 60 Hz ( ± 0.2 % )
  • THDV(@Linear load)< 2 %
  • Backup switch time< 10 ms
  • Rated output power3 KW / 3 KVA3.68 KW / 3.68 KVA4 KW / 4 KVA
  • Peak output power8.4 KVA, 10s

Type DesignationSH5.0RSSH6.0RS

Input ( DC )

  • Recommended max. PV input power7.5 kWp9.0 kWp
  • Max. PV input voltager600 V
  • Min. operating PV voltage / Start-up input voltage40 V / 50 V
  • Rated PV input voltage360 V
  • MPP voltage range40 V – 560 V
  • No. of independent MPP inputs2
  • No. of PV strings per MPPT1 / 1
  • Max. PV input current32 A ( 16 A / 16 A )
  • Max. DC short-circuit current40 A ( 20 A / 20 A )
  • Max. current for input connector20 A

Battery data

  • Battery typeLi-ion battery
  • Battery voltage range80 V - 460 V
  • Max. charge / discharge current30 A / 30 A
  • Max. charge / discharge power6.6 KW

Input / output (AC)

  • Max. AC power from grid12 KVA13 KVA
  • Rated AC output power5 KW6 KW
  • Max. AC output apparent power5 KVA6 KVA
  • Max. AC output current22.8 A27.3 A
  • Rated AC voltage220 V / 230 V / 240 V
  • AC voltage range154 V - 276 V
  • Rated grid frequency / Grid frequency range50 Hz / 45 - 55 Hz, 60 Hz / 55 - 65 Hz
  • Harmonic ( THD )< 3 % ( at rated power )
  • Power factor at rated power / Adjustable power factor>0.99 at default value at rated power
  • Feed-in phases / Connection phases1 / 1
  • Max. efficiency / European efficiency97.7 % / 97.3 %97.7 % / 97.3 %

Backup data (on grid mode)

  • Max. output power for backup load6 KW
  • Max. output current for backup load27.3 A

Backup data (off grid mode)

  • Rated voltage220 V / 230 V / 240 V ( ± 2 % )
  • Rated frequency50 Hz / 60 Hz ( ± 0.2 % )
  • THDV(@Linear load)< 2 %
  • Backup switch time< 10 ms
  • Rated output power5 KW / 5 KVA6 KW / 6 KVA
  • Peak output power8.4 KVA, 10s

Protection & Function

  • Grid monitoringYes
  • DC reverse polarity protectionYes
  • AC short-circuit protectionYes
  • Leakage current protectionYes
  • DC switch (solar)Yes
  • Surge ProtectionDC type II / AC type II
  • PID Zero functionYes
  • Parallel operation on grid port / Max. No of invertersMaster-slave mode / 3
  • Optimizer compatibility *Optional

General Data

  • Dimensions ( W * H * D )490 mm * 340 mm * 170 mm
  • Weight18.5 kg
  • Mounting methodWall-mounting bracket
  • Degree of protectionIP65
  • Topology (Solar / Battery)Transformerless
  • Operating ambient temperature range-25 ℃ to 60 ℃
  • Allowable relative humidity range ( non-condensing )0 % - 100 %
  • Cooling methodNatural cooling
  • Max. operating altitude4000 m
  • DisplayLED digital display & LED indicator
  • CommunicationRS485 / Ethernet / WLAN / CAN
  • DI / DODI * 4 / DO * 1 / DRM
  • DC connection typeMC4 (PV, Max.6 mm²) / Evo2 Compatible (Battery, Max.6 mm²)
  • AC connection typePlug and Play (Grid Max.16mm², Backup Max.6mm²)
  • Grid complianceIEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEC 61727, IEC/EN 61000-3-11, IEC/EN 61000-3-12, EN 62477-1, AS/NZS 4777.2:2020, EN 50549-1, CEI 0-21, G 98 / G 99, UNE 217002:2020, NTS V2 TypeA, C10/26
