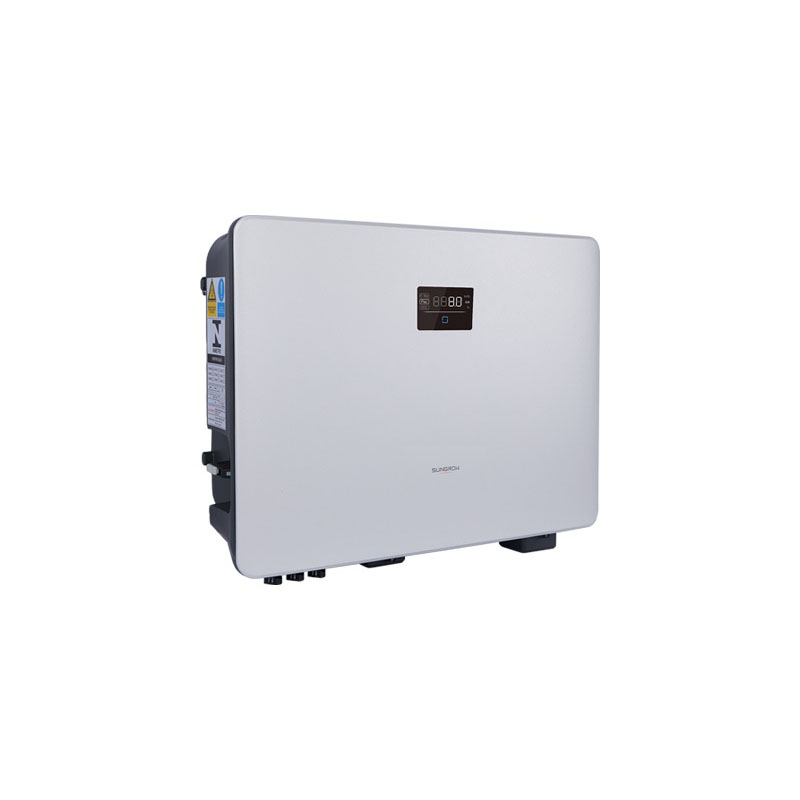

SG-RS Series 8KW-10KW String Inverters
SG-RS Series 8KW-10KW String Inverters

SG-RS Series 8KW-10KW String Inverters

SG-RS Series 8-10KW grid tie string inverters suitable for 50Hz / 60Hz grid, could be used in Asia, Africa,South America,Australia and Europe. Available for hand installation, no need for lifting machinery assistance.

CATEGORY:
Description

Single Phase String Inverter SG8.0/9.0/10RS

HIGH YIELD

Compatible with high-power PV and bifacial modules for maximum energy output.

Lower startup voltage & wider MPPT voltage range to optimize performance under varying conditions.

Built-in smart PID recovery (Potential-Induced Degradation) to ensure long-term efficiency.

SAFE AND RELIABLE

Integrated arc fault circuit interrupter (AFCI) for enhanced fire safety.

Type II DC & AC surge protection devices (SPD) to safeguard against voltage spikes.

C5 corrosion protection rating for durability in harsh environments.

USER-FRIENDLY SETUP

Plug-and-play installation for quick deployment.

One-click access to the iSolar Cloud monitoring platform for seamless control.

Lightweight, compact design with optimized heat dissipation for space efficiency.

SMART MANAGEMENT

Real-time data updates (10-second refresh rate) for precise system tracking.

24/7 live monitoring via online platforms or the integrated display.

Online IV curve scanning & diagnostics for proactive system health checks.


Type DesignationSG8.0RSSG9.0RSSG10RS

Input ( DC )

  • Recommended max. PV input power12 kWp13.5 kWp15 kWp
  • Max. PV input voltage600 V
  • Min. operating PV voltage / Start-up input voltage40 V / 50 V
  • Rated PV input voltage360 V
  • MPP voltage range40 V – 560 V
  • No. of independent MPP inputs3
  • Default No. of PV strings per MPPT1
  • Max. PV input current48 A ( 16 A / 16 A / 16 A )
  • Max. DC short-circuit current60 A ( 20 A / 20 A / 20 A)

Output ( AC )

  • Rated AC output power8000 W9000 W10000 W
  • Max. AC Output power8000 VA9000 VA10000 VA
  • Rated AC output current ( at 230 V )34.8 A39.2 A43.5 A
  • Max. AC output current36.4 A41 A45.5 A
  • Rated AC voltage220 V / 230 V / 240 V
  • AC voltage range154 V - 276 V
  • Rated grid frequency / Grid frequency range50 Hz / 45 - 55 Hz, 60 Hz / 55 - 65 Hz
  • Harmonic ( THD )< 3 % ( at rated power )
  • Power factor at rated power / Adjustable power factor> 0.99 / 0.8 leading - 0.8 lagging
  • Feed-in phases / Connection phases1 / 1
  • Max. efficiency / European efficiency97.8 % / 97.3 %97.8 % / 97.4 %97.8 % / 97.4 %

Protection

  • Grid monitoringYes
  • DC reverse polarity protectionYes
  • AC short-circuit protectionYes
  • Leakage current protectionYes
  • Surge ProtectionDC type II / AC type II
  • DC switchYes
  • PV string current monitoringYes
  • Arc fault circuit interrupter ( AFCI )Yes
  • PID Zero functionYes

General Data

  • Dimensions ( W * H * D )490 mm * 340 mm * 170 mm
  • Weight19 kg
  • Mounting methodWall-mounting bracket
  • TopologyTransformerless
  • Degree of protectionIP65
  • Operating ambient temperature range-25 ℃ to 60 ℃
  • Allowable relative humidity range ( non-condensing )0 % - 100 %
  • Cooling methodNatural cooling
  • Max. operating altitude4000 m
  • DisplayLED digital display & LED indicator
  • CommunicationEthernet / WLAN / RS485 / DI ( Ripple control & DRM )
  • DC connection typeMC4 ( Max. 6 mm² )
  • AC connection typePlug and play connector ( Max. 16 mm² )
  • Grid complianceIEC / EN62109-1/2, IEC / EN62116, IEC / EN61727, IEC / EN61000-6-2/3, AS/NZS 4777.2, ABNT NBR 16149, ABNT NBR 16150, G99
  • Grid SupportActive & reactive power control and power ramp rate control
