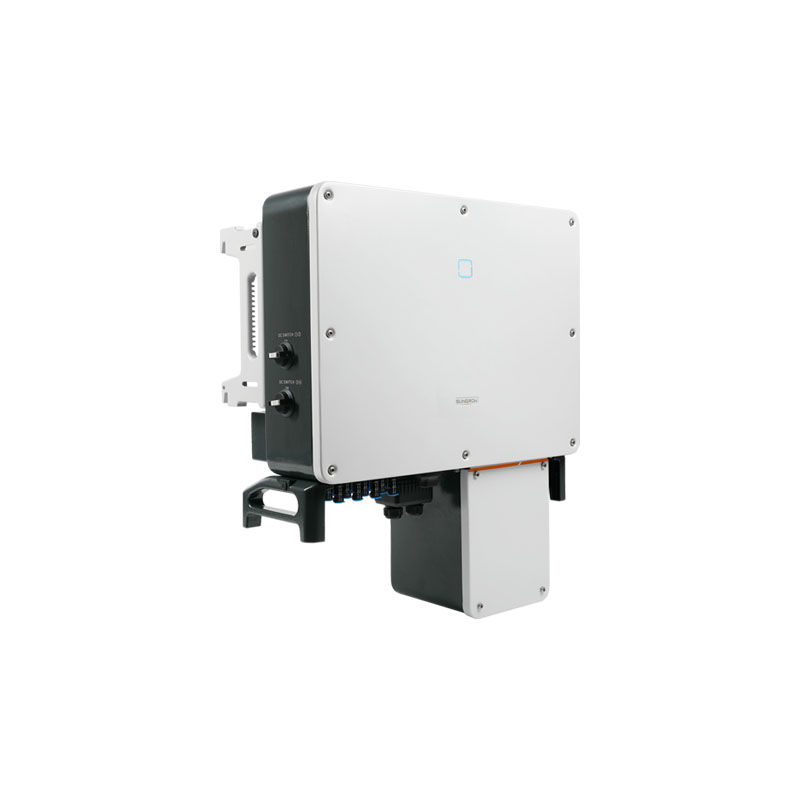

SG36-60CX-US Solar Inverters for North American
SG36-60CX-US Solar Inverters for North American

SG36-60CX-US Solar Inverters for North American

The SG36-60CX-US 36KW and 60KW Solar inverters are compatible with both 50Hz and 60Hz electrical grids, making them ideal for North American applications.

CATEGORY:
Description

ENERGY OPTIMIZATION

4-6 channel MPPT architecture delivering 98.8% peak efficiency.

Bifacial panel optimization capabilities.

Automated PID remediation system.

INTELLIGENT MANAGEMENT

Contactless system activation with OTA updates.

Real-time IV characteristic analysis.

Fuseless architecture with per-string current tracking.

COST-EFFECTIVE DEPLOYMENT

1.5 DC-AC overloading capacity.

Universal conductor support (Aluminum/Copper).

Multi-axis mounting configurations (0-90°).

CERTIFIED PROTECTION

NEMA 4X/C5-M corrosion resistance certification.

Dual-stage surge protection (DC & AC circuits).

UL 1741 compliance with grid code adaptability.


Type DesignationSG36CX-USSG60CX-US

Input ( DC )

  • Max. PV input voltage1100 V *
  • Min. PV input voltage / Start-up input voltage200 V / 250 V
  • Rated PV input voltage710 V
  • MPPT operating voltage range200 – 1000 V
  • No. of independent MPP inputs46
  • No. of PV strings per MPPT2
  • Max. PV input current4 * 26 A6 * 26 A
  • Max. DC short-circuit current45 A

Output ( AC )

  • Rated AC output power36kVA @ 113°F (45°C)/30kVA @ 122°F(50°C60kVA @ 113°F (45°C)/50kVA @ 122°F(50°C)
  • Max. AC output apparent power43.3 A72.2 A
  • Rated AC voltage3 / N / PE, 277 V / 480 V
  • AC voltage range422 V – 528 V
  • Nominal grid frequency / Grid frequency range60 Hz / 55 Hz – 65 Hz
  • Harmonic ( THD )< 3 % (at nominal power)
  • DC current injection< 0.5 % In
  • Power factor at nominal power / Adjustable power factor> 0.99 / 0.8 leading – 0.8 lagging
  • Feed-in phases / AC connection3 / 3
  • Max. efficiency / CEC efficiency98.6 % / 98.0 %98.8 % / 98.0 %

Protection

  • DC reverse polarity protectionYes
  • AC short circuit protectionYes
  • Leakage current protectionYes
  • Grid monitoringYes
  • DC switchYes
  • AC switchYes
  • PV string monitoringYes
  • Arc fault circuit interrupter ( AFCI )Yes
  • PID recovery functionYes
  • Overvoltage protectionDC Type II (optional: Type I + II) / AC Type II
  • Rapid shutdownYes

General Data

  • Dimensions ( W * H * D )Inverter:702mm*595mm*310mm; Wire-Box:231mm*295 mm*234mmInverter:782mm*645mm*310mm; Wire-Box:231mm*295mm*234mm
  • Weight54 kg65 kg
  • TopologyTransformerless
  • Ingress protection ratingType 4X ( NEMA 4X, IP66 )
  • Night power consumption< 2 W
  • Operating ambient temperature range-30 to 60 ℃ (> 45 ℃ derating)
  • Allowable relative humidity range0 % - 100 %
  • Cooling methodSmart forced air cooling
  • Max. operating altitude4000 m (> 3000 m derating)
  • DisplayLED, Bluetooth+APP
  • CommunicationRS485 / Optional: WLAN, Ethernet
  • Third-Party communication protocolSunSpec Modbus
  • DC connection typeMC4 ( #12 - #10 AWG )
  • AC connection typeOT ( #6 - 2/0 AWG, Cu or Al )OT ( #5 - 2/0 AWG, Cu or Al )
  • ComplianceUL1741, UL1741 SA/SB, CA Rule 21, IEEE 1547, IEEE 1547.1, CSA C22.2, No.107.1-01, UL1699B and FCC Part 15, UL1998, Rule 14, NEC 2023
  • Grid SupportLVRT, HVRT, active & reactive power control and power ramp rate control
