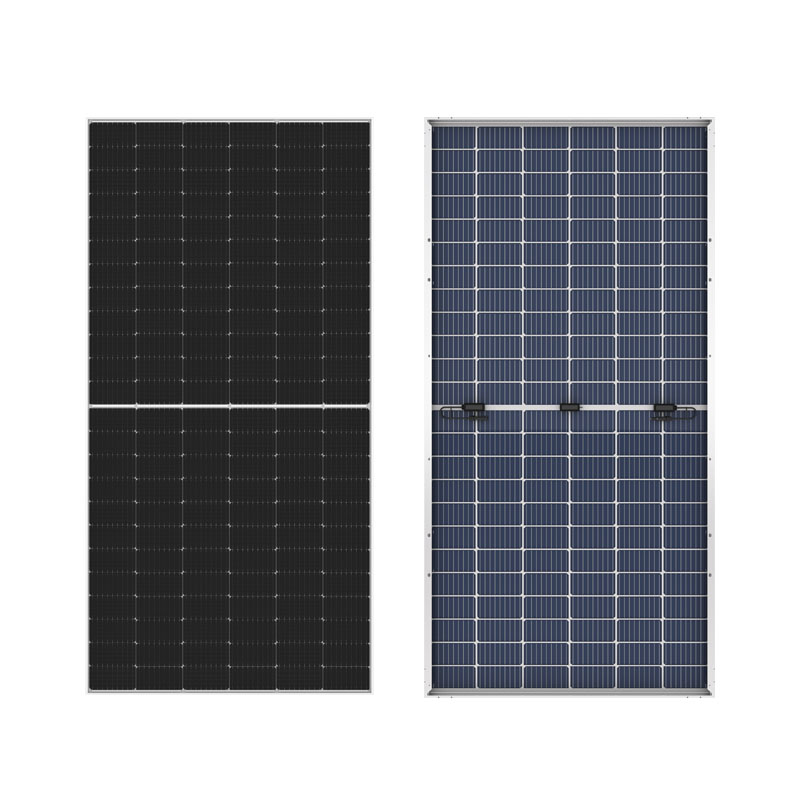

Hi-MO 5 Bifacial PV Panel
Bifacial pv solar panels enhance energy yield through rear-side power generation, while their 13A operational current ensures seamless compatibility with mainstream string inverters.
Core Advantages
Smart Soldering Technology
Uniform soldering techniques enhance module power output and efficiency while boosting load capacity for superior performance.
Optimized Module Design
Large-format M10 wafer modules utilize double-glass and framed packaging, ensuring structural integrity and space-efficient power density.
Gallium-Doped Wafer Technology
Mitigates Light-Induced Degradation (LID), ensuring long-term power stability and minimal efficiency loss over the module’s lifespan.
Bifacial Energy Harvesting
Dual-sided power generation increases total energy yield, validated by third-party testing and customer-proven results.
Inverter Compatibility
Optimized electrical parameters (13A working current) seamlessly integrate with mainstream string inverters for streamlined system design.
Electrical Performance Parameters of Hi-MO 5 Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).
LR5-72HBD-545M
STCNOCT- Maximum power (Pmax/W):545407.4
- Open-circuit voltage (Voc/V):49.6546.68
- Short circuit current (Isc/A):13.9211.23
- Peak power voltage (Vmp/V):41.8039.00
- Peak power current (Imp/A):13.0410.45
- Module efficiency (%):21.1
LR5-72HBD-550M
STCNOCT- Maximum power (Pmax/W):550411.1
- Open-circuit voltage (Voc/V):49.8046.82
- Short circuit current (Isc/A):13.9911.29
- Peak power voltage (Vmp/V):41.9539.14
- Peak power current (Imp/A):13.1210.51
- Module efficiency (%):21.3
LR5-72HBD-555M
STCNOCT- Maximum power (Pmax/W):555414.8
- Open-circuit voltage (Voc/V):49.9546.97
- Short circuit current (Isc/A):14.0511.34
- Peak power voltage (Vmp/V):42.1039.28
- Peak power current (Imp/A):13.1910.56
- Module efficiency (%):21.5
LR5-72HBD-560M
STCNOCT- Maximum power (Pmax/W):560418.6
- Open-circuit voltage (Voc/V):50.1047.11
- Short circuit current (Isc/A):14.1011.38
- Peak power voltage (Vmp/V):42.2539.42
- Peak power current (Imp/A):13.2610.62
- Module efficiency (%):21.7
Load Capacity
- Maximum static load on the front (such as snow and wind): 5400Pa
- Maximum static load on the back (such as wind): 2400Pa
- Hail test: Diameter 25 mm, impact speed 23 m/s
Temperature Coefficient (STC test)
- Temperature coefficient of short circuit current (Isc): +0.050%/℃
- Temperature coefficient of open circuit voltage (Voc): -0.265%/℃
- Temperature coefficient of peak power (Pmax): -0.340%/℃

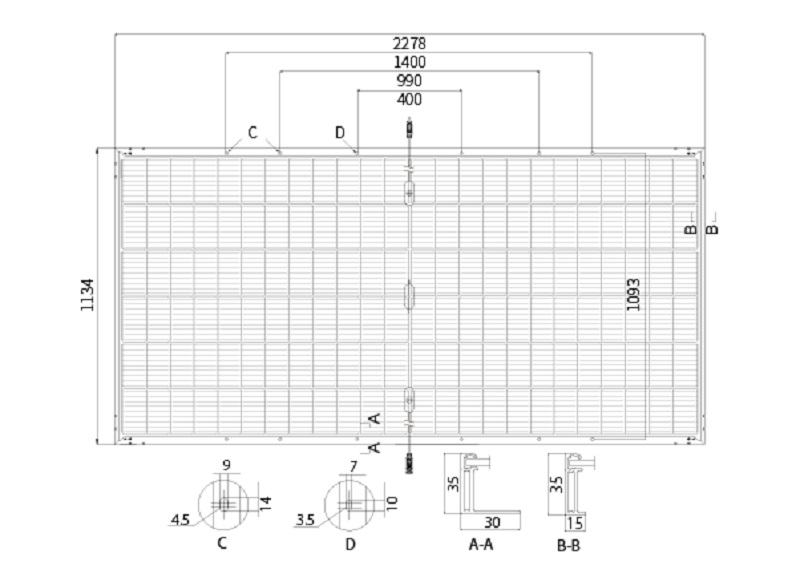

Mechanical Parameters
- Layout: 144 (6×24)
- Junction box: Split junction box, IP68, 3 diodes
- Weight: 32.6kg
- Size: 2278×1134×35mm
- Packaging: 36 pcs./pallet; 180 pcs./20GP; 720 pcs./40GP;
