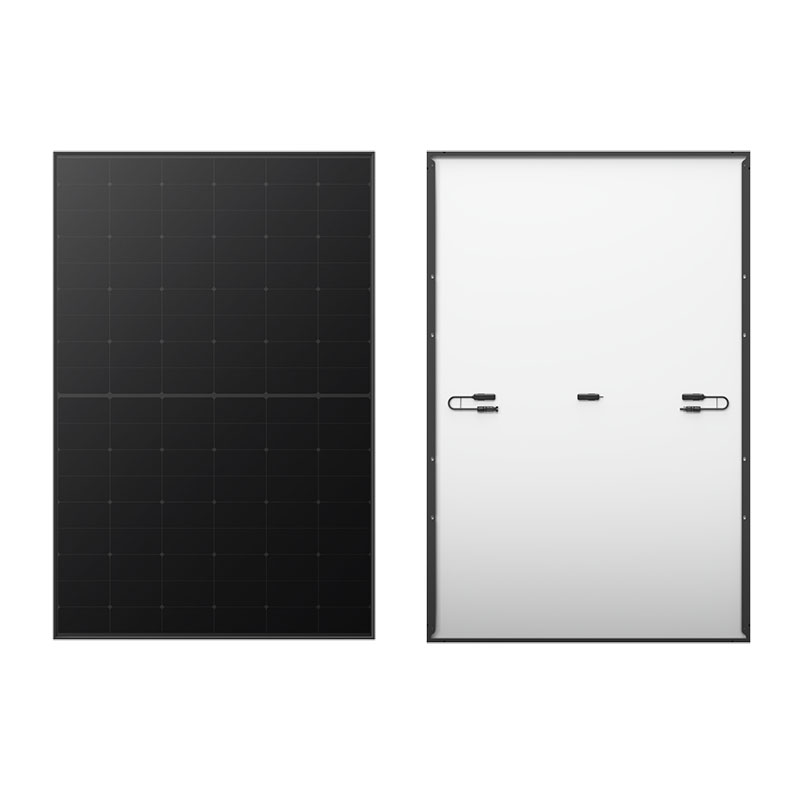

Hi-MO X6 Explorer PV Solar Panels
Hi-MO X6 Explorer PV Solar Panels

Hi-MO X6 Explorer PV Solar Panels

The Hi-MO X6 Explorer series solar panels achieves a significant boost in power generation capacity through comprehensive technological upgrades to its HPBC cells and modules.

CATEGORY:
Description

Core Advantages

High-efficiency Cells

HPBC cells achieve an efficiency exceeding 22.5%.

Aesthetic Appearance

Hi-MO X6 simplifies structural complexity while redefining the aesthetic standards of photovoltaic modules.

Outstanding Performance

The series achieves significantly enhanced power generation through comprehensive upgrades to HPBC cells and modules.

Market-leading Reliability

Hi-MO X6 employs pioneering full back welding technology, effectively enhancing module resistance to micro-cracking.


Electrical Performance Parameters of Hi-MO X6 Explorer Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version LR5-54HTH

  • LR5-54HTH-420M

    STCNOCT
  • Maximum power (Pmax/W):420314
  • Open-circuit voltage (Voc/V):38.7336.36
  • Short circuit current (Isc/A):14.0011.31
  • Peak power voltage (Vmp/V):32.4429.60
  • Peak power current (Imp/A):12.9510.60
  • Module efficiency (%):21.5

  • LR5-54HTH-425M

    STCNOCT
  • Maximum power (Pmax/W):425318
  • Open-circuit voltage (Voc/V):38.9336.55
  • Short circuit current (Isc/A):14.0711.36
  • Peak power voltage (Vmp/V):32.6429.78
  • Peak power current (Imp/A):13.0310.67
  • Module efficiency (%):21.8

  • LR5-54HTH-430M

    STCNOCT
  • Maximum power (Pmax/W):430321
  • Open-circuit voltage (Voc/V):39.1336.74
  • Short circuit current (Isc/A):14.1511.43
  • Peak power voltage (Vmp/V):32.8429.97
  • Peak power current (Imp/A):13.1010.72
  • Module efficiency (%):22

  • LR5-54HTH-435M

    STCNOCT
  • Maximum power (Pmax/W):435325
  • Open-circuit voltage (Voc/V):39.3336.93
  • Short circuit current (Isc/A):14.2211.49
  • Peak power voltage (Vmp/V):33.0430.15
  • Peak power current (Imp/A):13.1710.78
  • Module efficiency (%):22.3

  • LR5-54HTH-440M

    STCNOCT
  • Maximum power (Pmax/W):440329
  • Open-circuit voltage (Voc/V):39.5337.11
  • Short circuit current (Isc/A):14.3011.55
  • Peak power voltage (Vmp/V):33.2430.33
  • Peak power current (Imp/A):13.2410.85
  • Module efficiency (%):22.5

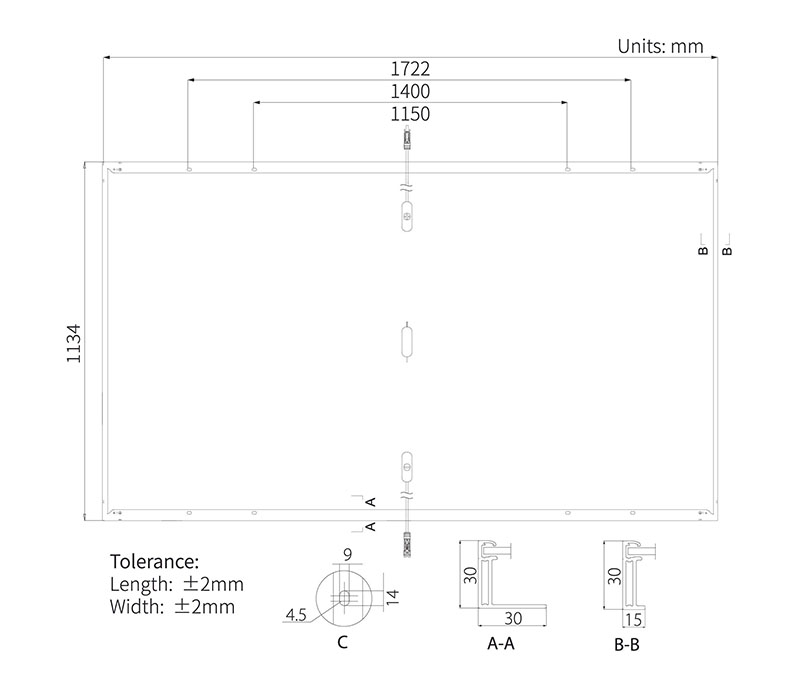

Mechanical Parameters

  • Layout: 108 (6×18)
  • Junction box: Split junction box, IP68
  • Weight: 20.8kg
  • Size: 1722×1134×30mm
  • Packaging: 36 pcs./pallet; 216 pcs./20GP; 936 pcs./40GP;

Version LR5-72HTH

  • LR5-72HTH-565M

    STCNOCT
  • Maximum power (Pmax/W):565422
  • Open-circuit voltage (Voc/V):51.7648.60
  • Short circuit current (Isc/A):14.0111.31
  • Peak power voltage (Vmp/V):43.6139.79
  • Peak power current (Imp/A):12.9610.61
  • Module efficiency (%):21.9

  • LR5-72HTH-570M

    STCNOCT
  • Maximum power (Pmax/W):570426
  • Open-circuit voltage (Voc/V):51.9148.74
  • Short circuit current (Isc/A):14.0711.36
  • Peak power voltage (Vmp/V):43.7639.93
  • Peak power current (Imp/A):13.0310.68
  • Module efficiency (%):22.1

  • LR5-72HTH-575M

    STCNOCT
  • Maximum power (Pmax/W):575430
  • Open-circuit voltage (Voc/V):52.0648.88
  • Short circuit current (Isc/A):14.1411.42
  • Peak power voltage (Vmp/V):43.9140.07
  • Peak power current (Imp/A):13.1010.73
  • Module efficiency (%):22.3

  • LR5-72HTH-580M

    STCNOCT
  • Maximum power (Pmax/W):580433
  • Open-circuit voltage (Voc/V):52.2149.02
  • Short circuit current (Isc/A):14.2011.47
  • Peak power voltage (Vmp/V):44.0640.20
  • Peak power current (Imp/A):13.1710.78
  • Module efficiency (%):22.5

  • LR5-72HTH-585M

    STCNOCT
  • Maximum power (Pmax/W):585437
  • Open-circuit voltage (Voc/V):52.3649.16
  • Short circuit current (Isc/A):14.2711.52
  • Peak power voltage (Vmp/V):44.2140.34
  • Peak power current (Imp/A):13.2410.84
  • Module efficiency (%):22.6

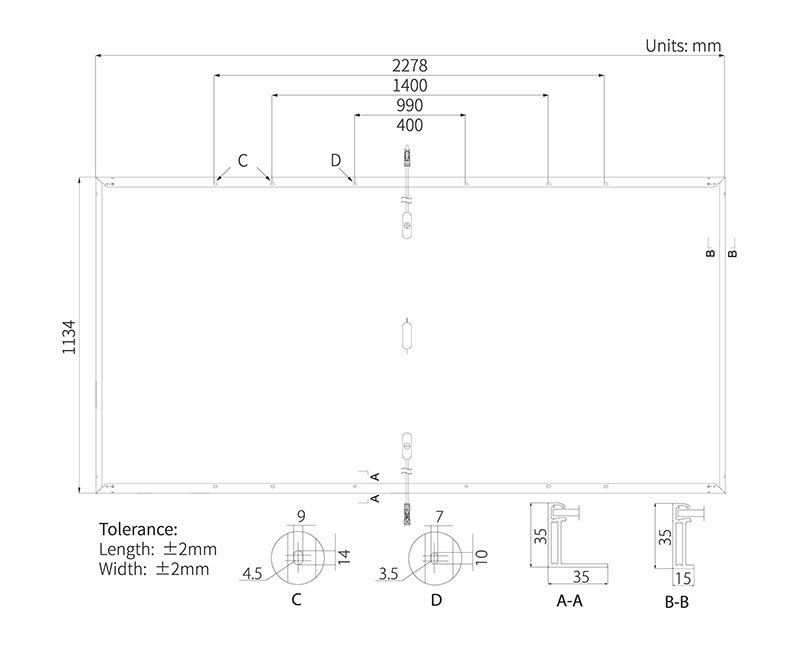

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68
  • Weight: 27.5kg
  • Size: 2278×1134×35mm
  • Packaging: 31 pcs./pallet; 155 pcs./20GP; 620 pcs./40GP;

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.230%/℃
  • Temperature coefficient of peak power (Pmax): -0.290%/℃
