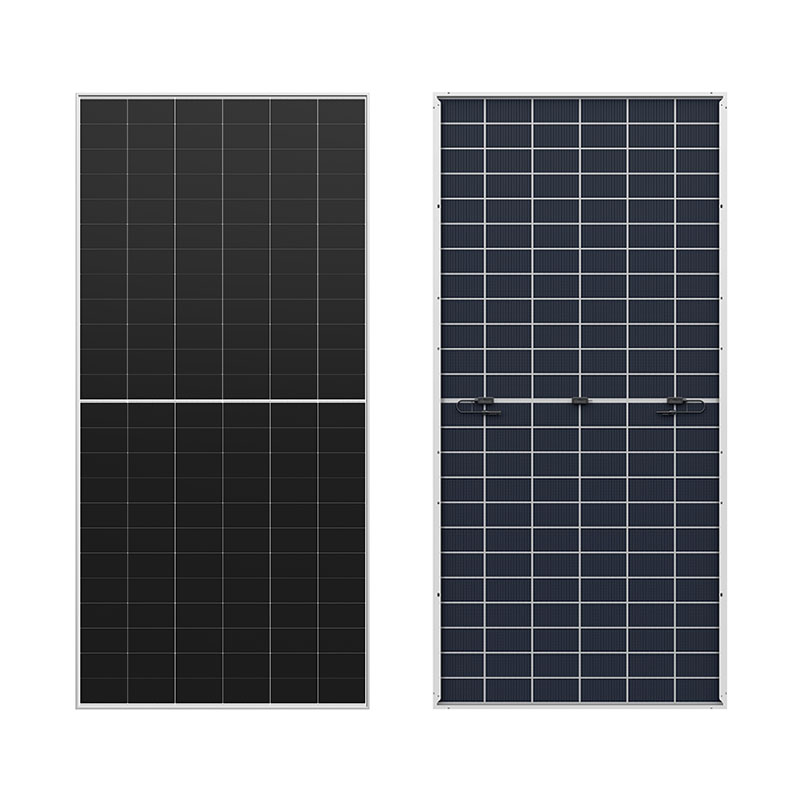

Hi-MO 9 Series Solar Panel PV Modules
Hi-MO 9 Series Solar Panel PV Modules

Hi-MO 9 Series Solar Panel PV Modules

Hi-MO 9 Solar Panel integrates HPBC 2.0 cell technology, delivering a module efficiency of up to 24.43%.

CATEGORY:
Description

Core Advantages

HPBC 2.0 Cell Architecture

Enhanced Low-Light Performance: Extends daily power generation duration through superior photon capture efficiency under suboptimal lighting conditions.

Industry-Leading Module Efficiency: Achieves up to 24.43% conversion efficiency through optimized light absorption and carrier collection.

Zero Busbar (0BB) Front Design: Minimizes shading loss and improves current collection uniformity.

Peak Power Output: Delivers maximum power ratings up to 660W for superior energy yield.

Irradiation Resilience: Advanced cell architecture maintains stable performance under uneven light distribution patterns.

Current Uniformity Assurance: Proprietary grid design mitigates current mismatch risks in partial shading scenarios.

Long-Term Reliability: Features 30-year linear power degradation rate 0.05% lower than conventional N-type counterparts

Sustained Energy Production: Progressive efficiency improvements ensure continuous performance enhancement throughout system lifecycle.


Electrical Performance Parameters of Hi-MO 9 Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

  • LR7-72HYD-625M

    STCNOCT
  • Maximum power (Pmax/W):625475.8
  • Open-circuit voltage (Voc/V):53.7251.05
  • Short circuit current (Isc/A):14.7311.83
  • Peak power voltage (Vmp/V):44.3742.17
  • Peak power current (Imp/A):14.0911.29
  • Module efficiency (%):23.1

  • LR7-72HYD-630M

    STCNOCT
  • Maximum power (Pmax/W):630479.6
  • Open-circuit voltage (Voc/V):53.8251.15
  • Short circuit current (Isc/A):14.8111.90
  • Peak power voltage (Vmp/V):44.4742.26
  • Peak power current (Imp/A):14.1711.36
  • Module efficiency (%):23.3

  • LR7-72HYD-635M

    STCNOCT
  • Maximum power (Pmax/W):635483.4
  • Open-circuit voltage (Voc/V):53.9251.24
  • Short circuit current (Isc/A):14.8911.96
  • Peak power voltage (Vmp/V):44.5742.36
  • Peak power current (Imp/A):14.2511.42
  • Module efficiency (%):23.5

  • LR7-72HYD-640M

    STCNOCT
  • Maximum power (Pmax/W):640487.2
  • Open-circuit voltage (Voc/V):54.0251.34
  • Short circuit current (Isc/A):14.9812.03
  • Peak power voltage (Vmp/V):44.6742.45
  • Peak power current (Imp/A):14.3311.49
  • Module efficiency (%):23.7

  • LR7-72HYD-645M

    STCNOCT
  • Maximum power (Pmax/W):645491.0
  • Open-circuit voltage (Voc/V):54.1251.43
  • Short circuit current (Isc/A):15.0612.10
  • Peak power voltage (Vmp/V):44.7742.55
  • Peak power current (Imp/A):14.4111.55
  • Module efficiency (%):23.9

  • LR7-72HYD-650M

    STCNOCT
  • Maximum power (Pmax/W):650494.8
  • Open-circuit voltage (Voc/V):54.2251.53
  • Short circuit current (Isc/A):15.1412.16
  • Peak power voltage (Vmp/V):44.8742.64
  • Peak power current (Imp/A):14.4911.61
  • Module efficiency (%):24.1

  • LR7-72HYD-655M

    STCNOCT
  • Maximum power (Pmax/W):655498.6
  • Open-circuit voltage (Voc/V):54.3251.62
  • Short circuit current (Isc/A):15.2212.22
  • Peak power voltage (Vmp/V):44.9742.74
  • Peak power current (Imp/A):14.5711.68
  • Module efficiency (%):24.2

  • LR7-72HYD-660M

    STCNOCT
  • Maximum power (Pmax/W):660502.4
  • Open-circuit voltage (Voc/V):54.4251.72
  • Short circuit current (Isc/A):15.3012.29
  • Peak power voltage (Vmp/V):45.0742.83
  • Peak power current (Imp/A):14.6511.75
  • Module efficiency (%):24.4

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.200%/℃
  • Temperature coefficient of peak power (Pmax): -0.260%/℃

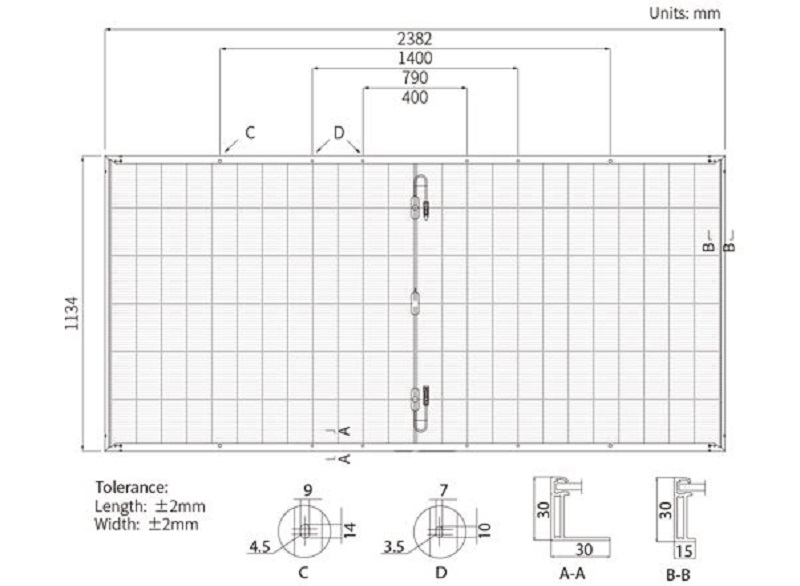

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 33.5kg
  • Size: 2382×1134×30mm
  • Packaging: 36 pcs./pallet; 144 pcs./20GP; 720 pcs./40HC;
