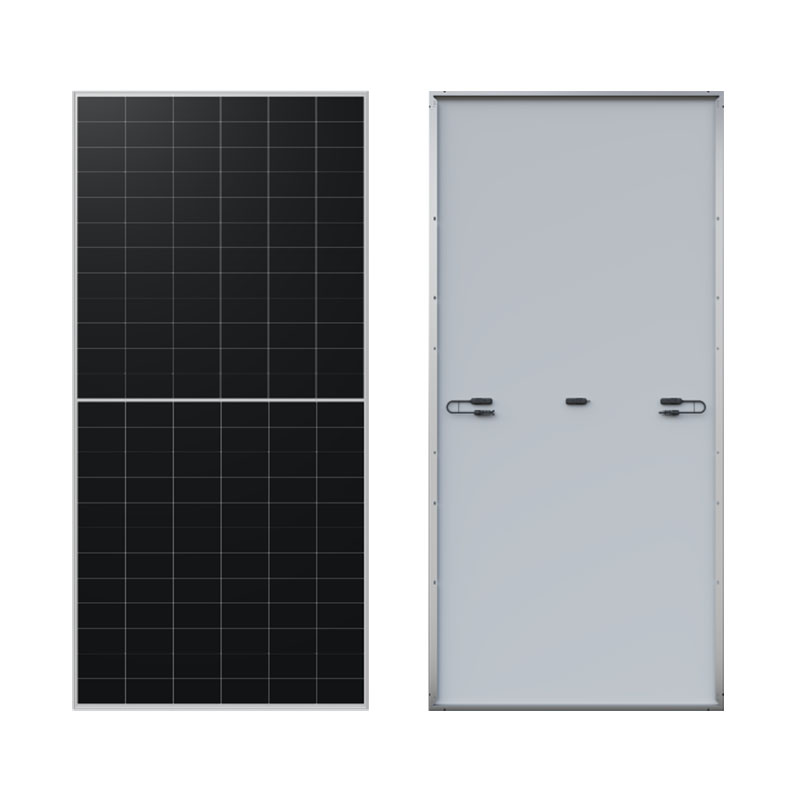

Hi-MO X6 Max Guardian Anti Dust Solar Panels
Hi-MO X6 Max Guardian Anti Dust Solar Panels

Hi-MO X6 Max Guardian Anti Dust Solar Panels

The Hi-MO X6 Max Guardian anti dust series A side free short edge design reduces dust accumulation, enabling self-cleaning through gravity and rain.

CATEGORY:
Description

Core Advantages

Minimizes Dust Buildup

The absence of design features on the shorter side allows dust to easily slide off the module naturally, aided by gravity and rain.

Robust Construction

Featuring a patented frame and cutting-edge sealing technology for superior strength and load-bearing performance.

Lower Operational & Maintenance Costs

The anti-dust design reduces the need for frequent cleaning, cutting down on long-term maintenance efforts.

Improved Efficiency

Boosts power generation output while decreasing cleaning frequency and associated expenses.


Electrical Performance Parameters of Hi-MO X6 Max Guardian Anti Dust Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version LR7-54HTHF

  • LR7-54HTHF-455M

    STCNOCT
  • Maximum power (Pmax/W):455340
  • Open-circuit voltage (Voc/V):39.1536.76
  • Short circuit current (Isc/A):14.7911.95
  • Peak power voltage (Vmp/V):32.9830.09
  • Peak power current (Imp/A):13.8011.30
  • Module efficiency (%):22.3

  • LR7-54HTHF-460M

    STCNOCT
  • Maximum power (Pmax/W):460343.7
  • Open-circuit voltage (Voc/V):39.3536.95
  • Short circuit current (Isc/A):14.8612.00
  • Peak power voltage (Vmp/V):33.1930.29
  • Peak power current (Imp/A):13.8611.35
  • Module efficiency (%):22.5

  • LR7-54HTHF-465M

    STCNOCT
  • Maximum power (Pmax/W):465347.4
  • Open-circuit voltage (Voc/V):39.5537.13
  • Short circuit current (Isc/A):14.9312.06
  • Peak power voltage (Vmp/V):33.3930.47
  • Peak power current (Imp/A):13.9311.41
  • Module efficiency (%):22.8

  • LR7-54HTHF-470M

    STCNOCT
  • Maximum power (Pmax/W):470351.2
  • Open-circuit voltage (Voc/V):39.7537.32
  • Short circuit current (Isc/A):15.0012.12
  • Peak power voltage (Vmp/V):33.5930.65
  • Peak power current (Imp/A):13.9911.45
  • Module efficiency (%):23.0

  • LR7-54HTHF-475M

    STCNOCT
  • Maximum power (Pmax/W):475354.9
  • Open-circuit voltage (Voc/V):39.9537.51
  • Short circuit current (Isc/A):15.0712.17
  • Peak power voltage (Vmp/V):33.7930.883
  • Peak power current (Imp/A):14.0611.51
  • Module efficiency (%):23.3

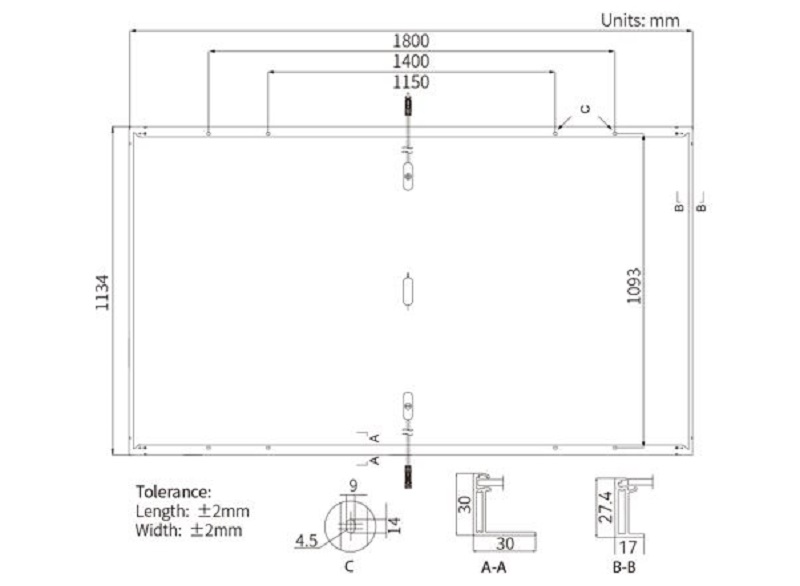

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68
  • Weight: 21.6kg
  • Size: 1800×1134×30mm
  • Packaging: 36 pcs./pallet; 216 pcs./20GP; 864 pcs./40HC;

Version LR7-72HTHF

  • LR7-72HTHF-605M

    STCNOCT
  • Maximum power (Pmax/W):605452.1
  • Open-circuit voltage (Voc/V):52.2749.17
  • Short circuit current (Isc/A):14.7411.91
  • Peak power voltage (Vmp/V):44.0340.18
  • Peak power current (Imp/A):13.7511.26
  • Module efficiency (%):22.4

  • LR7-72HTHF-610M

    STCNOCT
  • Maximum power (Pmax/W):610455.9
  • Open-circuit voltage (Voc/V):52.4249.22
  • Short circuit current (Isc/A):14.8011.95
  • Peak power voltage (Vmp/V):44.1840.32
  • Peak power current (Imp/A):13.8111.31
  • Module efficiency (%):22.6

  • LR7-72HTHF-615M

    STCNOCT
  • Maximum power (Pmax/W):615459.6
  • Open-circuit voltage (Voc/V):52.5749.36
  • Short circuit current (Isc/A):14.8712.01
  • Peak power voltage (Vmp/V):44.3340.46
  • Peak power current (Imp/A):13.8811.36
  • Module efficiency (%):22.8

  • LR7-72HTHF-620M

    STCNOCT
  • Maximum power (Pmax/W):620463.4
  • Open-circuit voltage (Voc/V):52.7249.59
  • Short circuit current (Isc/A):14.9312.06
  • Peak power voltage (Vmp/V):44.4840.59
  • Peak power current (Imp/A):13.9411.42
  • Module efficiency (%):23.0

  • LR7-72HTHF-625M

    STCNOCT
  • Maximum power (Pmax/W):625467.1
  • Open-circuit voltage (Voc/V):52.8749.64
  • Short circuit current (Isc/A):15.0112.12
  • Peak power voltage (Vmp/V):44.6340.73
  • Peak power current (Imp/A):14.0111.47
  • Module efficiency (%):23.1

  • LR7-72HTHF-630M

    STCNOCT
  • Maximum power (Pmax/W):630470.8
  • Open-circuit voltage (Voc/V):53.0249.78
  • Short circuit current (Isc/A):15.0712.17
  • Peak power voltage (Vmp/V):44.7840.87
  • Peak power current (Imp/A):14.0711.52
  • Module efficiency (%):23.3

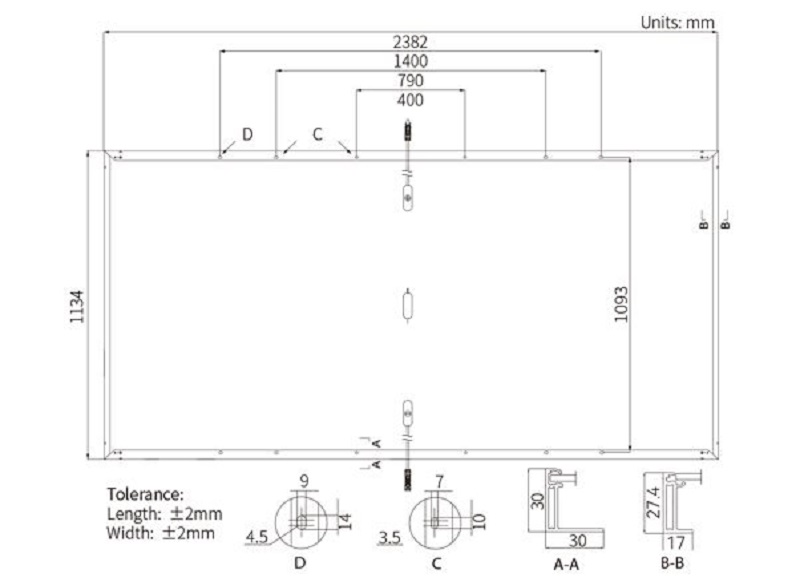

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68
  • Weight: 28.5kg
  • Size: 2382×1134×30mm
  • Packaging: 35 pcs./pallet; 144 pcs./20GP; 720 pcs./40HC;

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.230%/℃
  • Temperature coefficient of peak power (Pmax): -0.290%/℃
