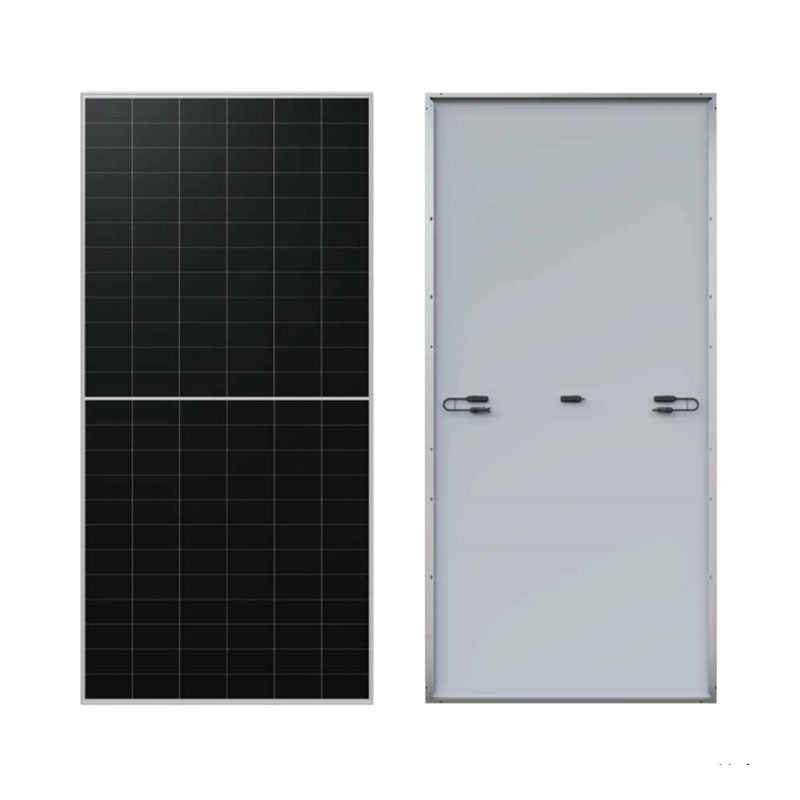

Hi-MO X10 Explorer Series Solar Panels
Hi-MO X10 Explorer Series Solar Panels

Hi-MO X10 Explorer Series Solar Panels

Hi-MO X10 Explorer solar panel, premium solar solution powered by groundbreaking HPBC 2.0 cell technology, achieving 24.1% module efficiency.

CATEGORY:
Description

The Hi-MO X10 solar panel is a premium solar solution engineered on the groundbreaking HPBC 2.0 cell technology, setting new benchmarks in power generation efficiency, reliability, and customer value. Designed to meet the demands of distributed energy markets worldwide, it delivers exceptional performance across diverse applications.

Key Features:

Unmatched Efficiency: Leverages HPBC 2.0 technology for superior energy output and reduced degradation.

Market Adaptability: Tailored for residential, commercial, and industrial decentralized systems.

Customer-Centric Benefits: Optimized ROI through enhanced durability and long-term performance.

Four Specialized Series:

Explorer: Maximizes energy yield in innovative and space-constrained installations.

Scientist: Integrates smart-grid compatibility for data-driven optimization.

Guardian: Ensures resilience in extreme weather conditions with robust construction.

Artist: Combines aesthetic design with seamless architectural integration.

Global Impact:

As the preferred high-value choice for decentralized solar applications, the Hi-MO X10 stands at the forefront of sustainable energy solutions, offering versatility, innovation, and unmatched reliability for a greener future.

Why Choose Hi-MO X10?

Highest module efficiency is 24.8% (industry-leading).

30-year linear power warranty with ultra-low degradation.

Configurable for diverse global market needs.


Electrical Performance Parameters of Hi-MO X10 Explorer Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version LR7-54HVH

  • LR7-54HVH-475M

    STCNOCT
  • Maximum power (Pmax/W):475362
  • Open-circuit voltage (Voc/V):40.1838.18
  • Short circuit current (Isc/A):15.0312.08
  • Peak power voltage (Vmp/V):33.1631.52
  • Peak power current (Imp/A):14.3311.49
  • Module efficiency (%):23.3

  • LR7-54HVH-480M

    STCNOCT
  • Maximum power (Pmax/W):480365
  • Open-circuit voltage (Voc/V):40.2938.29
  • Short circuit current (Isc/A):15.1312.16
  • Peak power voltage (Vmp/V):33.2831.63
  • Peak power current (Imp/A):14.4311.57
  • Module efficiency (%):23.5

  • LR7-54HVH-485M

    STCNOCT
  • Maximum power (Pmax/W):485369
  • Open-circuit voltage (Voc/V):40.4038.39
  • Short circuit current (Isc/A):15.2312.24
  • Peak power voltage (Vmp/V):33.4031.74
  • Peak power current (Imp/A):14.5311.65
  • Module efficiency (%):23.8

  • LR7-54HVH-490M

    STCNOCT
  • Maximum power (Pmax/W):490373
  • Open-circuit voltage (Voc/V):40.5238.51
  • Short circuit current (Isc/A):15.3312.32
  • Peak power voltage (Vmp/V):33.5131.85
  • Peak power current (Imp/A):14.6311.73
  • Module efficiency (%):24

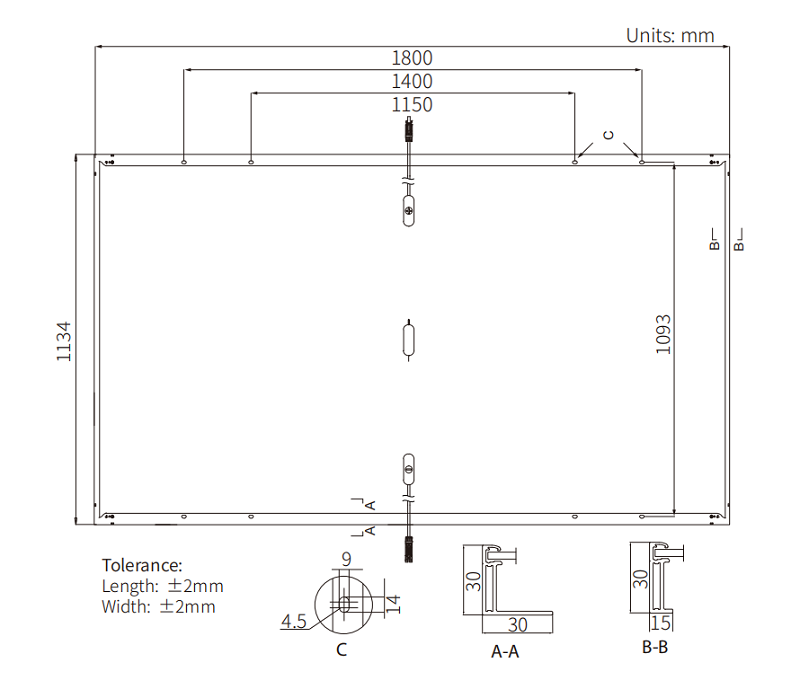

Mechanical Parameters

  • Layout: 108 (6×18)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 21.6kg
  • Size: 1800×1134×30mm
  • Packaging: 36 pcs./pallet; 216 pcs./20GP; 864 pcs./40HC;

Version LR7-72HVH

  • LR7-72HVH-635M

    STCNOCT
  • Maximum power (Pmax/W):635483
  • Open-circuit voltage (Voc/V):53.6050.94
  • Short circuit current (Isc/A):15.0512.09
  • Peak power voltage (Vmp/V):44.2642.06
  • Peak power current (Imp/A):14.3511.50
  • Module efficiency (%):23.5

  • LR7-72HVH-640M

    STCNOCT
  • Maximum power (Pmax/W):640487
  • Open-circuit voltage (Voc/V):53.7051.04
  • Short circuit current (Isc/A):15.1312.15
  • Peak power voltage (Vmp/V):44.3642.15
  • Peak power current (Imp/A):14.4311.56
  • Module efficiency (%):23.7

  • LR7-72HVH-645M

    STCNOCT
  • Maximum power (Pmax/W):645491
  • Open-circuit voltage (Voc/V):53.8051.13
  • Short circuit current (Isc/A):15.2112.22
  • Peak power voltage (Vmp/V):44.4642.75
  • Peak power current (Imp/A):14.5111.63
  • Module efficiency (%):23.9

  • LR7-72HVH-650M

    STCNOCT
  • Maximum power (Pmax/W):650495
  • Open-circuit voltage (Voc/V):53.9051.23
  • Short circuit current (Isc/A):15.2912.28
  • Peak power voltage (Vmp/V):44.5642.35
  • Peak power current (Imp/A):14.5911.69
  • Module efficiency (%):24.1

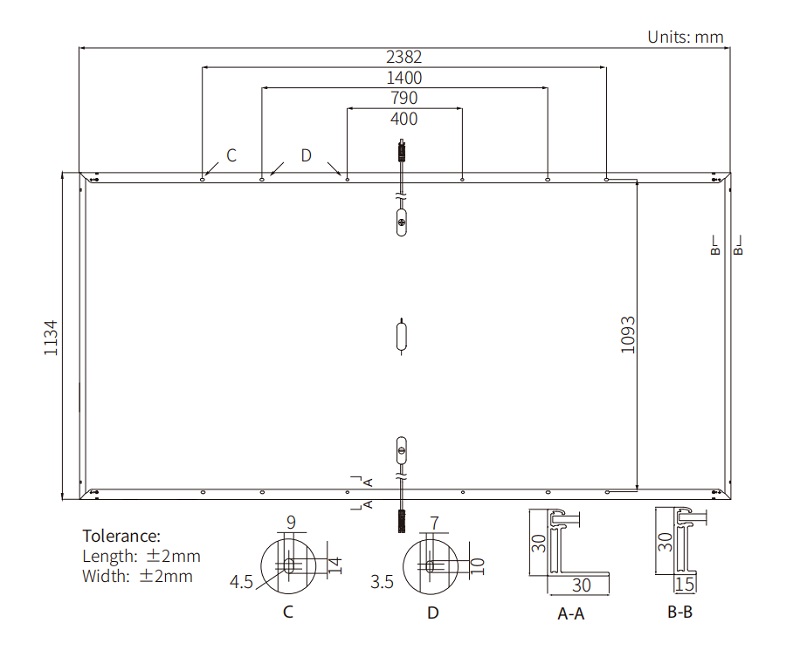

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 28.5kg
  • Size: 2382×1134×30mm
  • Packaging: 36 pcs./pallet; 144 pcs./20GP; 720 pcs./40HC;

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.200%/℃
  • Temperature coefficient of peak power (Pmax): -0.260%/℃
