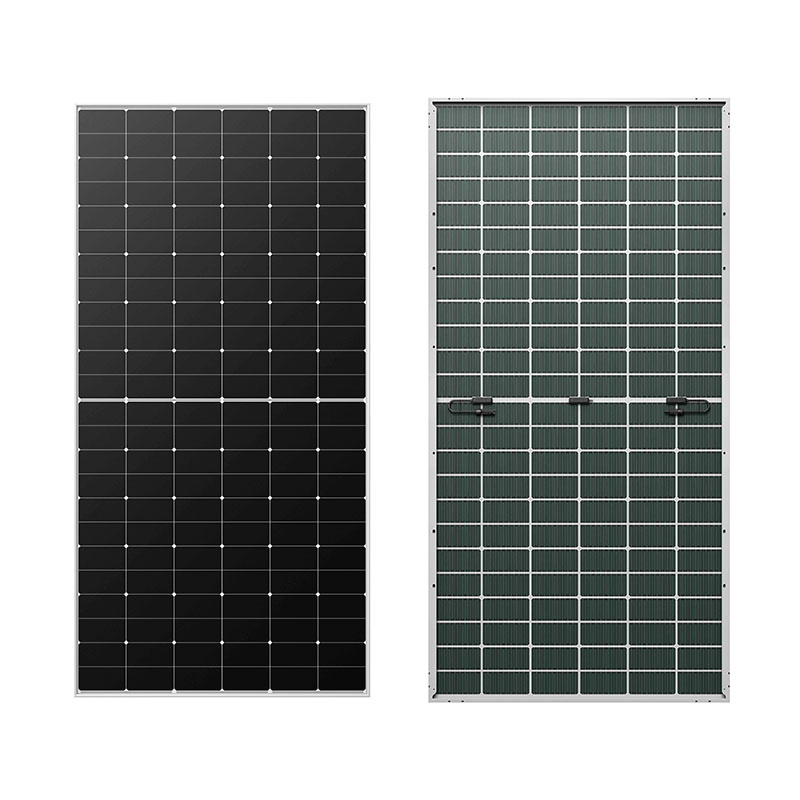

Hi-MO X6 Guardian Anti Humidity and Heat PV Panels
Hi-MO X6 Guardian Anti Humidity and Heat PV Panels

Hi-MO X6 Guardian Anti Humidity and Heat PV Panels

A cutting-edge PV solar panel engineered for extreme humidity and heat resilience, utilizing HPBC cell technology with dual-glass, double-sided encapsulation for unmatched moisture resistance and long-term durability.

CATEGORY:
Description

Core Advantages

Water-Resistant Encapsulation

Innovative high-barrier design blocks moisture ingress.

High-Purity POE Film

Ultra-pure POE film with precision lamination ensures long-term moisture resistance.

Low-Lead Electrodes

Custom low-lead formula delivers superior humidity and heat resistance.

Ultra-Low Degradation

1% first-year degradation; 0.35% linear annual rate.


Electrical Performance Parameters of Hi-MO X6 Guardian Anti Humidity and Heat Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

  • LR5-72HTDR-565M

    STCNOCT
  • Maximum power (Pmax/W):565422
  • Open-circuit voltage (Voc/V):51.8548.68
  • Short circuit current (Isc/A):13.9311.25
  • Peak power voltage (Vmp/V):43.4039.60
  • Peak power current (Imp/A):13.0210.66
  • Module efficiency (%):21.9

  • LR5-72HTDR-570M

    STCNOCT
  • Maximum power (Pmax/W):570426
  • Open-circuit voltage (Voc/V):52.0048.82
  • Short circuit current (Isc/A):14.0011.31
  • Peak power voltage (Vmp/V):43.5539.74
  • Peak power current (Imp/A):13.0910.72
  • Module efficiency (%):22.1

  • LR5-72HTDR-575M

    STCNOCT
  • Maximum power (Pmax/W):575430
  • Open-circuit voltage (Voc/V):52.1548.96
  • Short circuit current (Isc/A):14.0611.36
  • Peak power voltage (Vmp/V):43.7039.88
  • Peak power current (Imp/A):13.1610.77
  • Module efficiency (%):22.3

  • LR5-72HTDR-580M

    STCNOCT
  • Maximum power (Pmax/W):580433
  • Open-circuit voltage (Voc/V):52.3049.10
  • Short circuit current (Isc/A):14.1311.41
  • Peak power voltage (Vmp/V):43.8540.01
  • Peak power current (Imp/A):13.2310.83
  • Module efficiency (%):22.5

  • LR5-72HTDR-585M

    STCNOCT
  • Maximum power (Pmax/W):585437
  • Open-circuit voltage (Voc/V):52.4549.25
  • Short circuit current (Isc/A):14.1911.46
  • Peak power voltage (Vmp/V):44.0040.15
  • Peak power current (Imp/A):13.3010.89
  • Module efficiency (%):22.6

  • LR5-72HTDR-590M

    STCNOCT
  • Maximum power (Pmax/W):590441
  • Open-circuit voltage (Voc/V):52.6049.39
  • Short circuit current (Isc/A):14.2611.52
  • Peak power voltage (Vmp/V):44.1540.29
  • Peak power current (Imp/A):13.3710.96
  • Module efficiency (%):22.8

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.23%/℃
  • Temperature coefficient of peak power (Pmax): -0.28%/℃

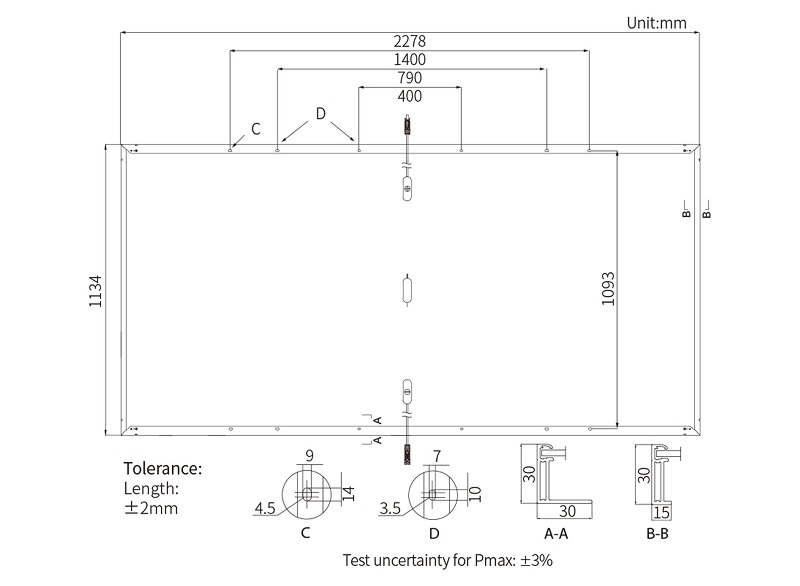

Mechanical Parameters

  • Layout: 108 (6×18)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 31.8kg
  • Size: 2278×1134×30mm
  • Packaging: 36 pcs./pallet; 180 pcs./20GP; 720 pcs./40GP;
