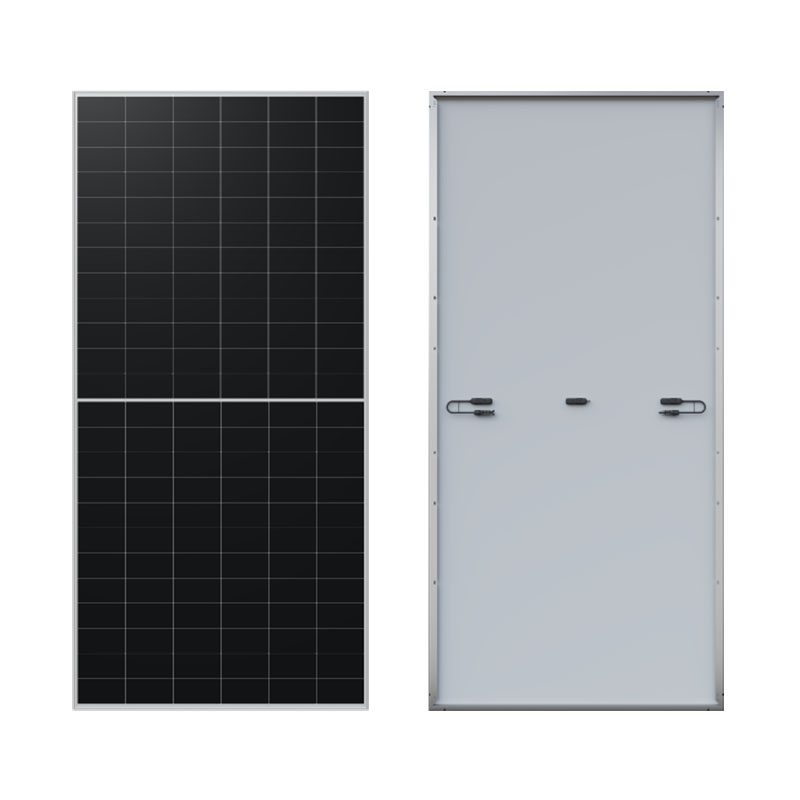

Hi-MO X6 Max Explorer Solar Panels
Hi-MO X6 Max Explorer Solar Panels

Hi-MO X6 Max Explorer Solar Panels

Hi-MO X6 Max Explorer solar panels feature upgraded HPBC cells and module technology, optimized for distributed generation projects.

CATEGORY:
Description

Core Advantages

High-efficiency Cells

HPBC cells achieve an efficiency exceeding 22.8%.

Aesthetic Appearance

Hi-MO X6 Max simplifies structural complexity while redefining the aesthetic standards of photovoltaic modules.

Outstanding Performance

The series achieves significantly enhanced power generation through comprehensive upgrades to HPBC cells and modules.

Market-leading Reliability

Hi-MO X6 Max employs pioneering full back welding technology, effectively enhancing module resistance to micro-cracking.


Electrical Performance Parameters of Hi-MO X6 Max Explorer Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version LR7-54HTH

  • LR7-54HTH-455M

    STCNOCT
  • Maximum power (Pmax/W):455340
  • Open-circuit voltage (Voc/V):39.1536.76
  • Short circuit current (Isc/A):14.7911.95
  • Peak power voltage (Vmp/V):32.9830.09
  • Peak power current (Imp/A):13.8011.30
  • Module efficiency (%):22.3

  • LR7-54HTH-460M

    STCNOCT
  • Maximum power (Pmax/W):460343.7
  • Open-circuit voltage (Voc/V):39.3536.95
  • Short circuit current (Isc/A):14.8612.00
  • Peak power voltage (Vmp/V):33.1930.29
  • Peak power current (Imp/A):13.8611.35
  • Module efficiency (%):22.5

  • LR7-54HTH-465M

    STCNOCT
  • Maximum power (Pmax/W):465347.4
  • Open-circuit voltage (Voc/V):39.5537.13
  • Short circuit current (Isc/A):14.9312.06
  • Peak power voltage (Vmp/V):33.3930.47
  • Peak power current (Imp/A):13.9311.41
  • Module efficiency (%):22.8

Mechanical Parameters

  • Layout: 108 (6×18)
  • Junction box: Split junction box, IP68
  • Weight: 21.6kg
  • Size: 1800×1134×30mm
  • Packaging: 36 pcs./pallet; 216 pcs./20GP; 864 pcs./40HC;

Version LR7-72HTH

  • LR7-72HTH-605M

    STCNOCT
  • Maximum power (Pmax/W):605452.1
  • Open-circuit voltage (Voc/V):52.2749.17
  • Short circuit current (Isc/A):14.7411.91
  • Peak power voltage (Vmp/V):44.0340.18
  • Peak power current (Imp/A):13.7511.26
  • Module efficiency (%):22.4

  • LR7-72HTH-610M

    STCNOCT
  • Maximum power (Pmax/W):610455.9
  • Open-circuit voltage (Voc/V):52.4249.22
  • Short circuit current (Isc/A):15.8011.95
  • Peak power voltage (Vmp/V):44.1840.32
  • Peak power current (Imp/A):13.8111.31
  • Module efficiency (%):22.6

  • LR7-72HTH-615M

    STCNOCT
  • Maximum power (Pmax/W):615459.6
  • Open-circuit voltage (Voc/V):52.5749.36
  • Short circuit current (Isc/A):15.8712.01
  • Peak power voltage (Vmp/V):44.3340.46
  • Peak power current (Imp/A):13.8811.36
  • Module efficiency (%):22.8

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68
  • Weight: 28.5kg
  • Size: 2382×1134×30mm
  • Packaging: 31 pcs./pallet; 144 pcs./20GP; 720 pcs./40HC;

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.230%/℃
  • Temperature coefficient of peak power (Pmax): -0.290%/℃
