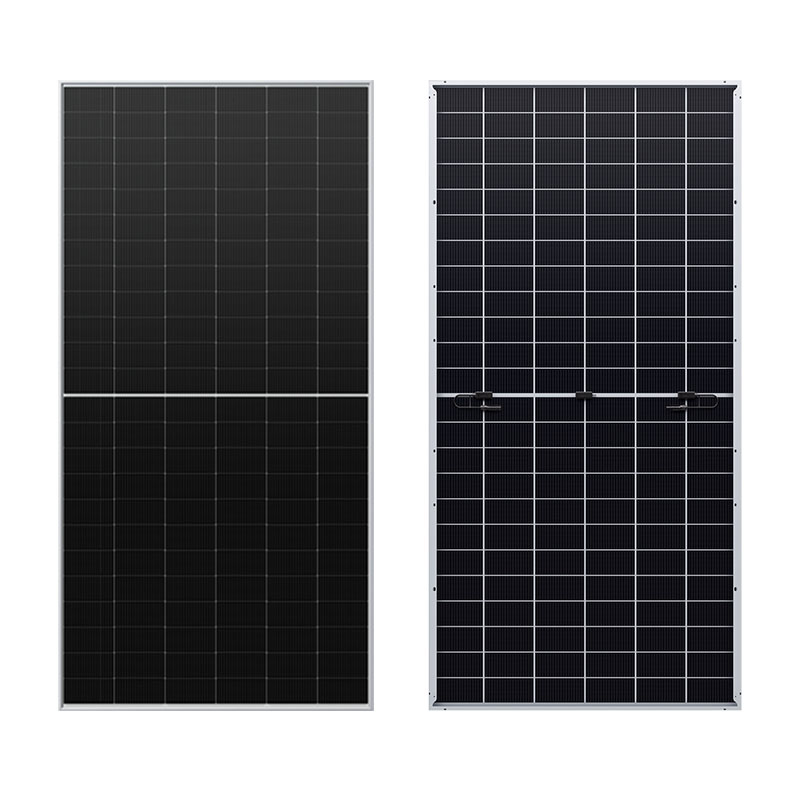

Hi-MO 7 Series PV Solar Panel Modules
Hi-MO 7 Series PV Solar Panel Modules

Hi-MO 7 Series PV Solar Panel Modules

Engineered for high-albedo deserts and gobi regions, Hi-MO 7 solar panels deliver 3% greater energy yield than standard bifacial modules in high-temperature conditions.

CATEGORY:
Description

Core Advantages

Premium Performance, Guaranteed

Hi-MO 7 Enhanced silicon wafers, cells, and packaging deliver reliable output with a 0.4% annual degradation warranty.

3% Higher Energy Yield

Featuring 80% bifaciality and a superior -0.28%/°C temperature coefficient, it outperforms standard bifacial modules.

4.5% Lower System Costs

Higher power density reduces BOS expenses—including mounting structures, inverters, cabling, and land use per watt.

Reduced Operational Costs

Greater efficiency cuts long-term expenses for maintenance, cleaning, and land leasing.


Electrical Performance Parameters of Hi-MO 7 Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version LR5-72HGD

  • LR5-72HGD-560M

    STCNOCT
  • Maximum power (Pmax/W):560426.3
  • Open-circuit voltage (Voc/V):50.9948.46
  • Short circuit current (Isc/A):13.8911.16
  • Peak power voltage (Vmp/V):42.8240.69
  • Peak power current (Imp/A):13.0810.48
  • Module efficiency (%):21.7

  • LR5-72HGD-565M

    STCNOCT
  • Maximum power (Pmax/W):565430.1
  • Open-circuit voltage (Voc/V):51.0948.55
  • Short circuit current (Isc/A):13.9711.22
  • Peak power voltage (Vmp/V):42.9140.78
  • Peak power current (Imp/A):13.1710.55
  • Module efficiency (%):21.9

  • LR5-72HGD-570M

    STCNOCT
  • Maximum power (Pmax/W):570433.9
  • Open-circuit voltage (Voc/V):51.1948.65
  • Short circuit current (Isc/A):14.0511.29
  • Peak power voltage (Vmp/V):43.0040.87
  • Peak power current (Imp/A):13.2610.62
  • Module efficiency (%):22.1

  • LR5-72HGD-575M

    STCNOCT
  • Maximum power (Pmax/W):575437.7
  • Open-circuit voltage (Voc/V):51.3048.75
  • Short circuit current (Isc/A):14.1411.35
  • Peak power voltage (Vmp/V):43.1140.97
  • Peak power current (Imp/A):13.3410.68
  • Module efficiency (%):22.3

  • LR5-72HGD-580M

    STCNOCT
  • Maximum power (Pmax/W):580441.5
  • Open-circuit voltage (Voc/V):51.4148.86
  • Short circuit current (Isc/A):14.2211.42
  • Peak power voltage (Vmp/V):43.2241.07
  • Peak power current (Imp/A):13.4210.75
  • Module efficiency (%):22.5

  • LR5-72HGD-585M

    STCNOCT
  • Maximum power (Pmax/W):585445.3
  • Open-circuit voltage (Voc/V):51.5248.96
  • Short circuit current (Isc/A):14.3011.48
  • Peak power voltage (Vmp/V):43.3341.18
  • Peak power current (Imp/A):13.5110.82
  • Module efficiency (%):22.6

  • LR5-72HGD-590M

    STCNOCT
  • Maximum power (Pmax/W):590449.1
  • Open-circuit voltage (Voc/V):51.6349.07
  • Short circuit current (Isc/A):14.3811.55
  • Peak power voltage (Vmp/V):43.4441.28
  • Peak power current (Imp/A):13.5910.89
  • Module efficiency (%):22.8

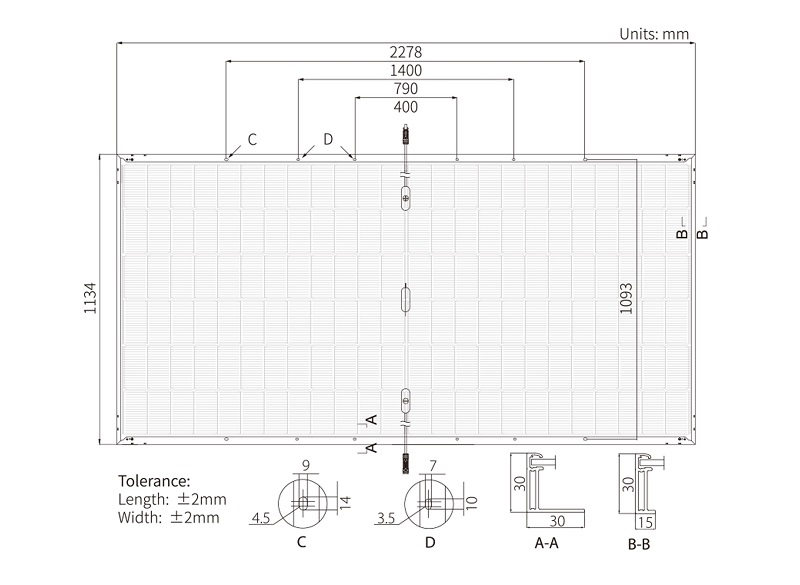

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 31.8kg
  • Size: 2278×1134×30mm
  • Packaging: 36 pcs./pallet; 144 pcs./20GP; 720 pcs./40HC;

Version LR7-72HGD

  • LR7-72HGD-585M

    STCNOCT
  • Maximum power (Pmax/W):585445.3
  • Open-circuit voltage (Voc/V):52.0149.43
  • Short circuit current (Isc/A):14.2911.48
  • Peak power voltage (Vmp/V):43.5741.41
  • Peak power current (Imp/A):13.4310.76
  • Module efficiency (%):21.7

  • LR7-72HGD-590M

    STCNOCT
  • Maximum power (Pmax/W):590449.1
  • Open-circuit voltage (Voc/V):52.1249.53
  • Short circuit current (Isc/A):14.3711.54
  • Peak power voltage (Vmp/V):43.6841.51
  • Peak power current (Imp/A):13.5110.82
  • Module efficiency (%):21.8

  • LR7-72HGD-595M

    STCNOCT
  • Maximum power (Pmax/W):595452.9
  • Open-circuit voltage (Voc/V):52.2349.64
  • Short circuit current (Isc/A):14.4511.61
  • Peak power voltage (Vmp/V):43.7941.63
  • Peak power current (Imp/A):13.5910.88
  • Module efficiency (%):22.0

  • LR7-72HGD-600M

    STCNOCT
  • Maximum power (Pmax/W):600456.7
  • Open-circuit voltage (Voc/V):52.3449.74
  • Short circuit current (Isc/A):14.5311.67
  • Peak power voltage (Vmp/V):43.9041.72
  • Peak power current (Imp/A):13.6710.95
  • Module efficiency (%):22.2

  • LR7-72HGD-605M

    STCNOCT
  • Maximum power (Pmax/W):605460.6
  • Open-circuit voltage (Voc/V):52.4449.84
  • Short circuit current (Isc/A):14.6111.74
  • Peak power voltage (Vmp/V):44.0041.82
  • Peak power current (Imp/A):13.7511.02
  • Module efficiency (%):22.4

  • LR7-72HGD-610M

    STCNOCT
  • Maximum power (Pmax/W):610464.4
  • Open-circuit voltage (Voc/V):52.5549.94
  • Short circuit current (Isc/A):14.6911.80
  • Peak power voltage (Vmp/V):44.1141.92
  • Peak power current (Imp/A):13.8311.08
  • Module efficiency (%):22.6

  • LR7-72HGD-615M

    STCNOCT
  • Maximum power (Pmax/W):615468.2
  • Open-circuit voltage (Voc/V):52.6650.04
  • Short circuit current (Isc/A):14.7711.86
  • Peak power voltage (Vmp/V):44.2242.03
  • Peak power current (Imp/A):13.9111.14
  • Module efficiency (%):22.8

  • LR7-72HGD-620M

    STCNOCT
  • Maximum power (Pmax/W):620472.0
  • Open-circuit voltage (Voc/V):52.7750.15
  • Short circuit current (Isc/A):14.8511.92
  • Peak power voltage (Vmp/V):44.3342.13
  • Peak power current (Imp/A):13.9911.21
  • Module efficiency (%):23.0

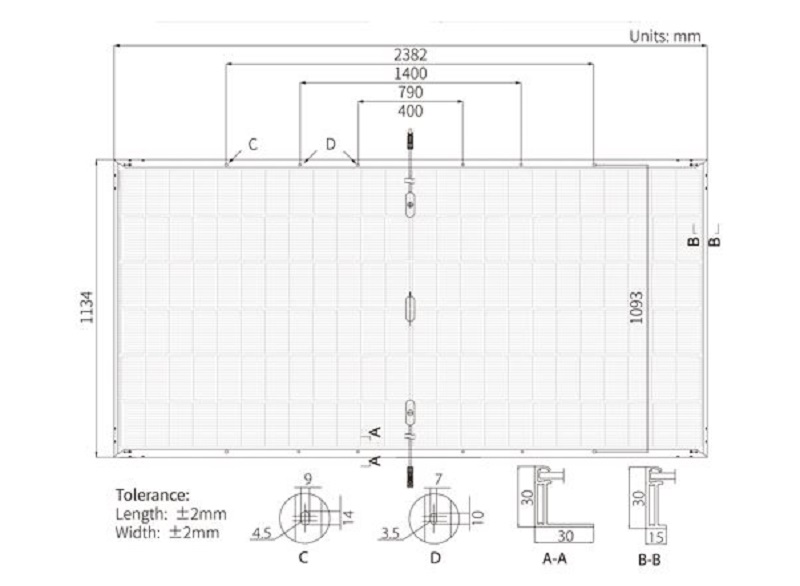

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 27.5kg
  • Size: 2382×1134×30mm
  • Packaging: 36 pcs./pallet; 144 pcs./20GP; 720 pcs./40HC;

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.045%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.230%/℃
  • Temperature coefficient of peak power (Pmax): -0.280%/℃
