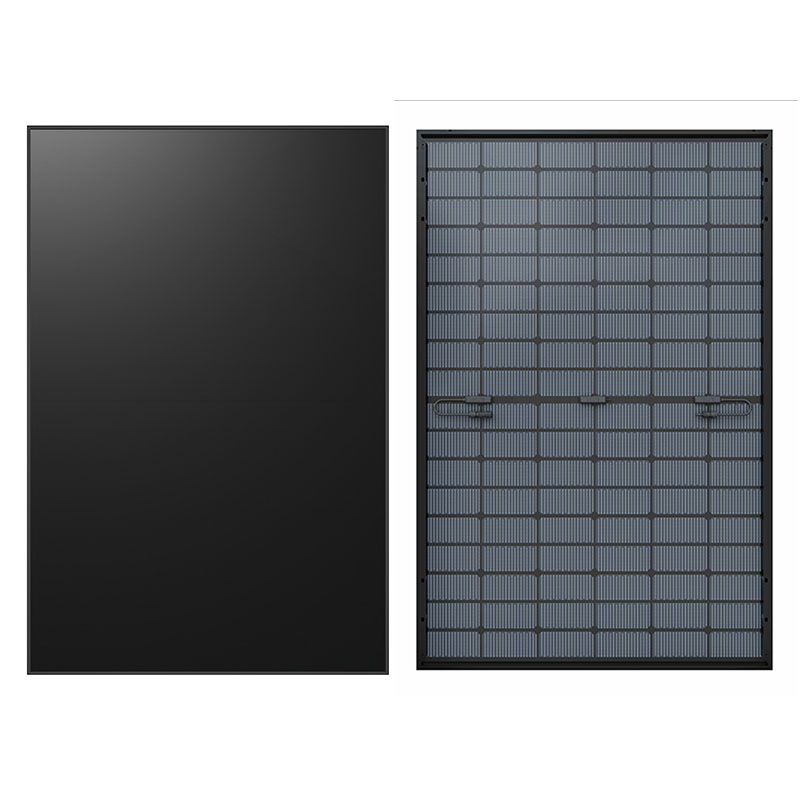

Hi-Mo X6 Artist Ultra Black Solar Panels
The Hi-Mo X6 Artist Ultra Black dual-glass solar panel delivers 420W to 435W power output.
With the launch of the new Hi-Mo X6 Artist (Ultra Black) solar panel, the entire Hi-Mo X6 Artist Series has undergone a comprehensive product refresh. Positioned under the philosophy of “Technology Leading Aesthetics,” the series fulfills users' demands for sophisticated product design and seamless architectural integration. By merging cutting-edge technology with aesthetic innovation, we strive to deliver products that harmonize artistic elegance with superior technical performance.
To further cater to the market and users’ growing preference for refined aesthetics, the Hi-Mo X6 Artist Series will soon introduce additional color variants. Stay tuned for more updates.
Electrical Performance Parameters of Hi-Mo X6 Artist Ultra Black Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).
LR5-54HTDB-420M
STCNOCT- Maximum power (Pmax/W):420313.8
- Open-circuit voltage (Voc/V):39.4537.04
- Short circuit current (Isc/A):13.5410.94
- Peak power voltage (Vmp/V):33.0730.18
- Peak power current (Imp/A):12.7110.40
- Module efficiency (%):21.5
LR5-54HTDB-425M
STCNOCT- Maximum power (Pmax/W):425317.6
- Open-circuit voltage (Voc/V):39.6537.23
- Short circuit current (Isc/A):13.6110.9
- Peak power voltage (Vmp/V):33.2730.36
- Peak power current (Imp/A):12.7810.46
- Module efficiency (%):21.8
LR5-54HTDB-430M
STCNOCT- Maximum power (Pmax/W):430321.3
- Open-circuit voltage (Voc/V):39.8537.42
- Short circuit current (Isc/A):13.6911.06
- Peak power voltage (Vmp/V):33.4730.54
- Peak power current (Imp/A):12.8510.53
- Module efficiency (%):22.0
LR5-54HTDB-435M
STCNOCT- Maximum power (Pmax/W):435325
- Open-circuit voltage (Voc/V):40.0537.60
- Short circuit current (Isc/A):13.7711.12
- Peak power voltage (Vmp/V):33.6730.72
- Peak power current (Imp/A):12.9210.58
- Module efficiency (%):22.3
Load Capacity
- Maximum static load on the front (such as snow and wind): 6000Pa
- Maximum static load on the back (such as wind): 3600Pa
- Hail test: 25mm Hailstone at the speed of 23m/s
Temperature Coefficient (STC test)
- Temperature coefficient of short circuit current (Isc): +0.050%/℃
- Temperature coefficient of open circuit voltage (Voc): -0.23%/℃
- Temperature coefficient of peak power (Pmax): -0.29%/℃

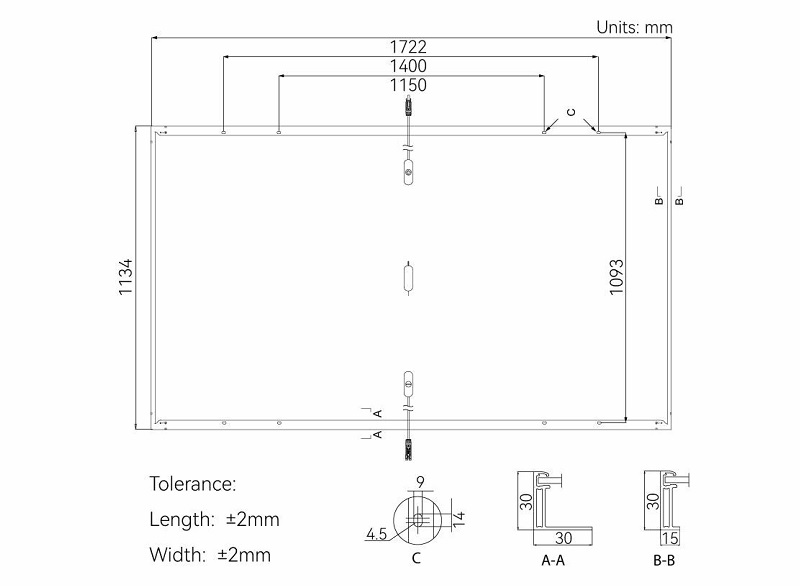

Mechanical Parameters
- Layout: 108 (6×18)
- Junction box: IP68
- Frame: Anodized aluminum alloy frame
- Weight: 22.5kg
- Size: 1722×1134×30mm
- Packaging: 36 pcs./pallet; 216 pcs./20GP; 396 pcs./40HC;
