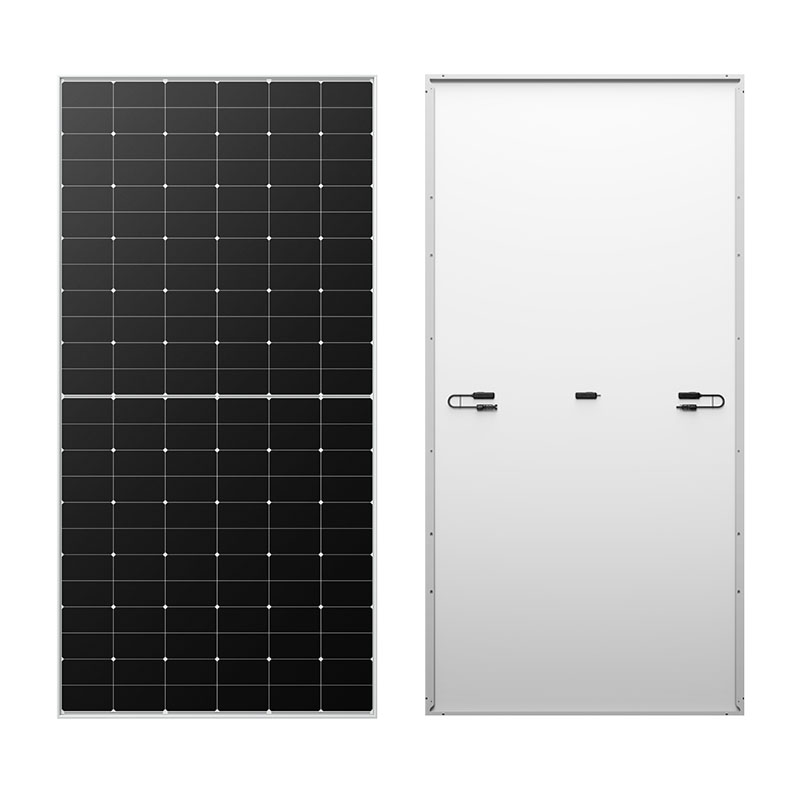

Hi-MO X6 Scientist PV Solar Panels
Hi-MO X6 Scientist PV Solar Panels

Hi-MO X6 Scientist PV Solar Panels

Hi-MO X6 Scientist series solar panels enhance power output via upgraded HPBC cell and module technology.

CATEGORY:
Description

Core Advantages

High-efficiency Cells

HPBC cells achieve an efficiency exceeding 23.3%.

Aesthetic Appearance

Hi-MO X6 simplifies structural complexity while redefining the aesthetic standards of photovoltaic modules.

Outstanding Performance

The series achieves significantly enhanced power generation through comprehensive upgrades to HPBC cells and modules.

Market-leading Reliability

Hi-MO X6 employs pioneering full back welding technology, effectively enhancing module resistance to micro-cracking.


Electrical Performance Parameters of Hi-MO X6 Scientist Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version LR5-54HTH

  • LR5-54HTH-445M

    STCNOCT
  • Maximum power (Pmax/W):445332
  • Open-circuit voltage (Voc/V):39.7337.30
  • Short circuit current (Isc/A):14.3711.61
  • Peak power voltage (Vmp/V):33.4430.51
  • Peak power current (Imp/A):13.3110.90
  • Module efficiency (%):22.8

  • LR5-54HTH-450M

    STCNOCT
  • Maximum power (Pmax/W):450336
  • Open-circuit voltage (Voc/V):39.9337.49
  • Short circuit current (Isc/A):14.4511.67
  • Peak power voltage (Vmp/V):33.6430.70
  • Peak power current (Imp/A):13.3810.95
  • Module efficiency (%):23

  • LR5-54HTH-455M

    STCNOCT
  • Maximum power (Pmax/W):455340
  • Open-circuit voltage (Voc/V):40.1337.68
  • Short circuit current (Isc/A):14.5211.73
  • Peak power voltage (Vmp/V):33.8430.88
  • Peak power current (Imp/A):13.4511.02
  • Module efficiency (%):23.3

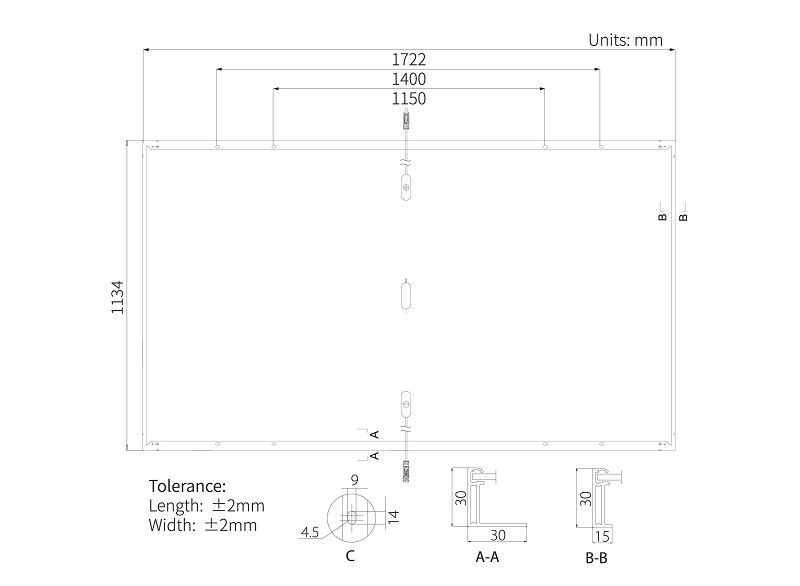

Mechanical Parameters

  • Layout: 108 (6×18)
  • Junction box: Split junction box, IP68
  • Weight: 20.8kg
  • Size: 1722×1134×30mm
  • Packaging: 36 pcs./pallet; 216 pcs./20GP; 936 pcs./40HC;

Version LR5-72HTH

  • LR5-72HTH-590M

    STCNOCT
  • Maximum power (Pmax/W):590441
  • Open-circuit voltage (Voc/V):52.5149.30
  • Short circuit current (Isc/A):14.3311.57
  • Peak power voltage (Vmp/V):44.3640.48
  • Peak power current (Imp/A):13.3110.90
  • Module efficiency (%):22.8

  • LR5-72HTH-595M

    STCNOCT
  • Maximum power (Pmax/W):595445
  • Open-circuit voltage (Voc/V):52.6649.44
  • Short circuit current (Isc/A):14.4011.63
  • Peak power voltage (Vmp/V):44.5140.62
  • Peak power current (Imp/A):13.3710.97
  • Module efficiency (%):23.0

  • LR5-72HTH-600M

    STCNOCT
  • Maximum power (Pmax/W):600448
  • Open-circuit voltage (Voc/V):52.8149.58
  • Short circuit current (Isc/A):14.4611.68
  • Peak power voltage (Vmp/V):44.6640.75
  • Peak power current (Imp/A):13.4411.00
  • Module efficiency (%):23.2

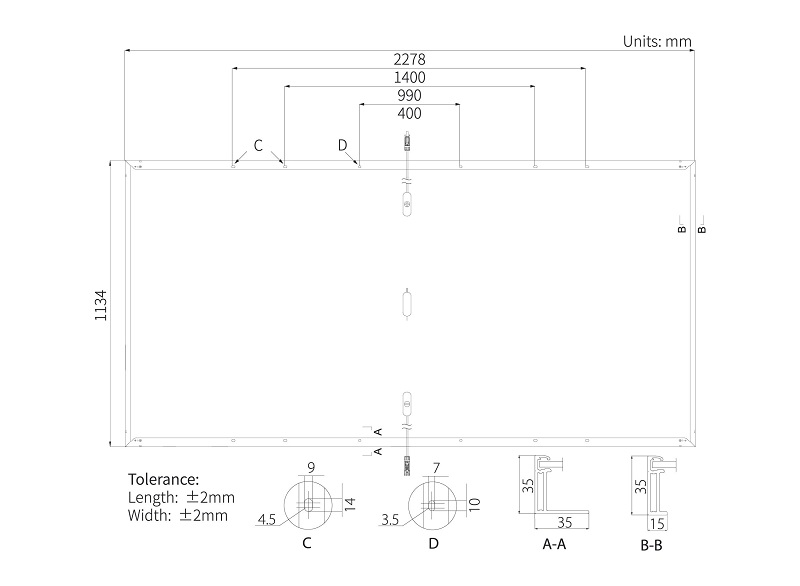

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68
  • Weight: 27.5kg
  • Size: 2278×1134×35mm
  • Packaging: 31 pcs./pallet; 155 pcs./20GP; 620 pcs./40HC;

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.230%/℃
  • Temperature coefficient of peak power (Pmax): -0.290%/℃
