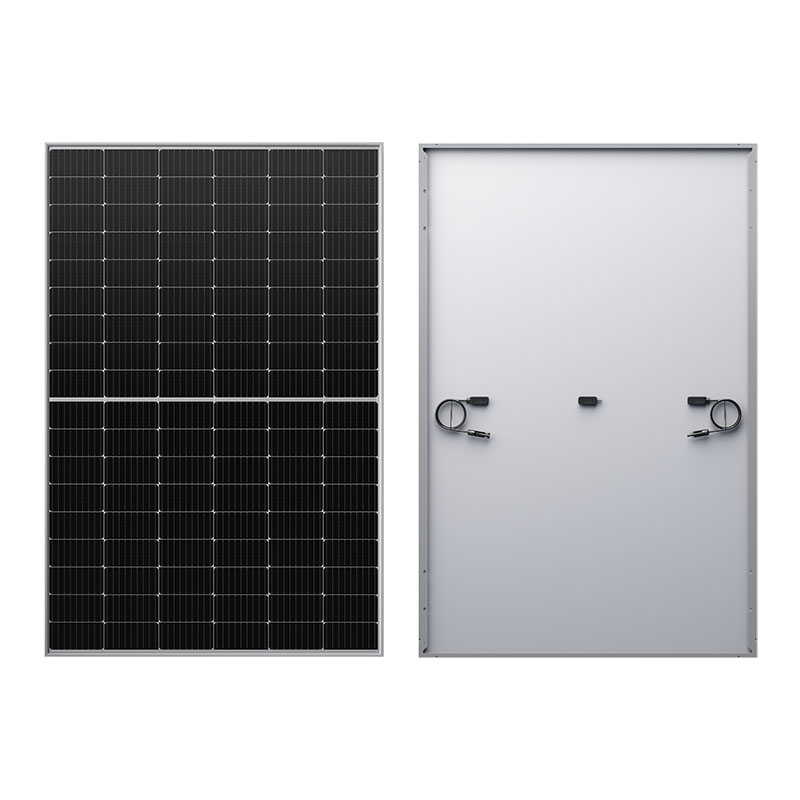

Hi-MO 5M Monofacial PV Panel
Hi-MO 5M Monofacial PV Panel

Hi-MO 5M Monofacial PV Panel

This solar panel series features M10 wafer-based 54 and 72 cell designs with an operating current of ~13A, ensuring compatibility with mainstream inverters.

CATEGORY:
Description

Core Advantages

Smart Soldering Technology

Uniform soldering techniques enhance module power output and efficiency while boosting load capacity for superior performance.

Optimized Module Design

M10 wafer-based 54 and 72 cell designs.

Gallium-Doped Wafer Technology

Mitigates Light-Induced Degradation (LID), ensuring long-term power stability and minimal efficiency loss over the module’s lifespan.

Inverter Compatibility

Optimized electrical parameters (13A working current) seamlessly integrate with mainstream string inverters for streamlined system design.



Electrical Performance Parameters of Hi-MO 5M Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version 54

  • LR5-54HPH-410M

    STCNOCT
  • Maximum power (Pmax/W):410306.5
  • Open-circuit voltage (Voc/V):37.2535.02
  • Short circuit current (Isc/A):13.8811.22
  • Peak power voltage (Vmp/V):31.2529.03
  • Peak power current (Imp/A):13.1210.56
  • Module efficiency (%):21.0

  • LR5-54HPH-415M

    STCNOCT
  • Maximum power (Pmax/W):415310.2
  • Open-circuit voltage (Voc/V):37.5035.26
  • Short circuit current (Isc/A):13.9411.27
  • Peak power voltage (Vmp/V):31.4929.25
  • Peak power current (Imp/A):13.1810.60
  • Module efficiency (%):21.3

  • LR5-54HPH-420M

    STCNOCT
  • Maximum power (Pmax/W):420313.9
  • Open-circuit voltage (Voc/V):37.7535.49
  • Short circuit current (Isc/A):14.0111.32
  • Peak power voltage (Vmp/V):31.7329.47
  • Peak power current (Imp/A):13.2410.65
  • Module efficiency (%):21.5

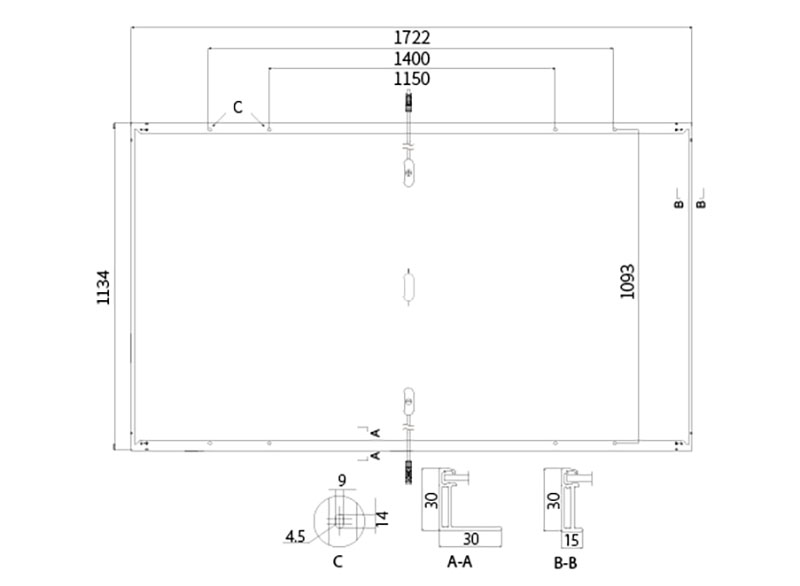

Mechanical Parameters

  • Layout: 108 (6×18)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 20.8kg
  • Size: 1722×1134×30mm
  • Packaging: 36 pcs./pallet; 216 pcs./20GP; 936 pcs./40GP;

Version 72

  • LR5-72HPH-550M

    STCNOCT
  • Maximum power (Pmax/W):550411.1
  • Open-circuit voltage (Voc/V):49.8046.82
  • Short circuit current (Isc/A):13.9811.31
  • Peak power voltage (Vmp/V):41.9538.97
  • Peak power current (Imp/A):13.1210.56
  • Module efficiency (%):21.3

  • LR5-72HPH-555M

    STCNOCT
  • Maximum power (Pmax/W):555414.8
  • Open-circuit voltage (Voc/V):49.9546.97
  • Short circuit current (Isc/A):14.0411.35
  • Peak power voltage (Vmp/V):42.1039.11
  • Peak power current (Imp/A):13.1910.61
  • Module efficiency (%):21.5

  • LR5-72HPH-560M

    STCNOCT
  • Maximum power (Pmax/W):560418.6
  • Open-circuit voltage (Voc/V):50.1047.11
  • Short circuit current (Isc/A):14.1011.40
  • Peak power voltage (Vmp/V):42.2539.25
  • Peak power current (Imp/A):13.2610.67
  • Module efficiency (%):21.7

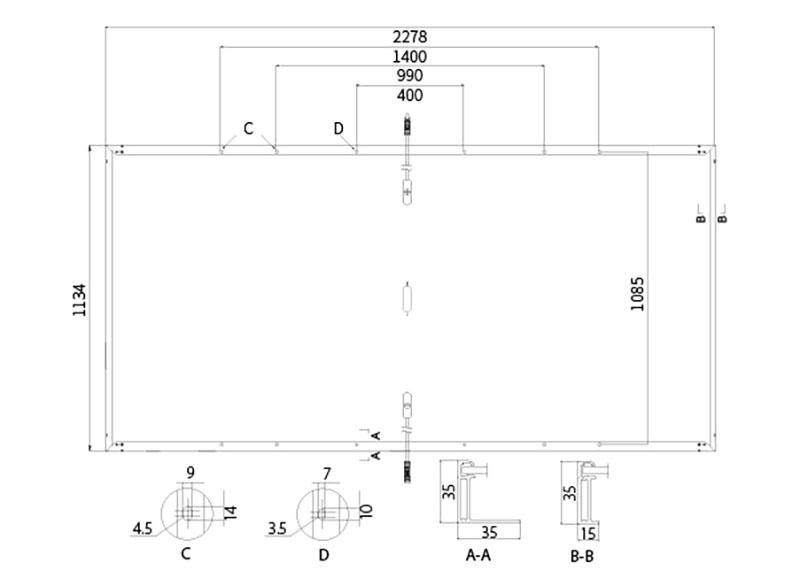

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 27.5kg
  • Size: 2278×1134×35mm
  • Packaging: 31 pcs./pallet; 155 pcs./20GP; 620 pcs./40GP;

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.265%/℃
  • Temperature coefficient of peak power (Pmax): -0.340%/℃
