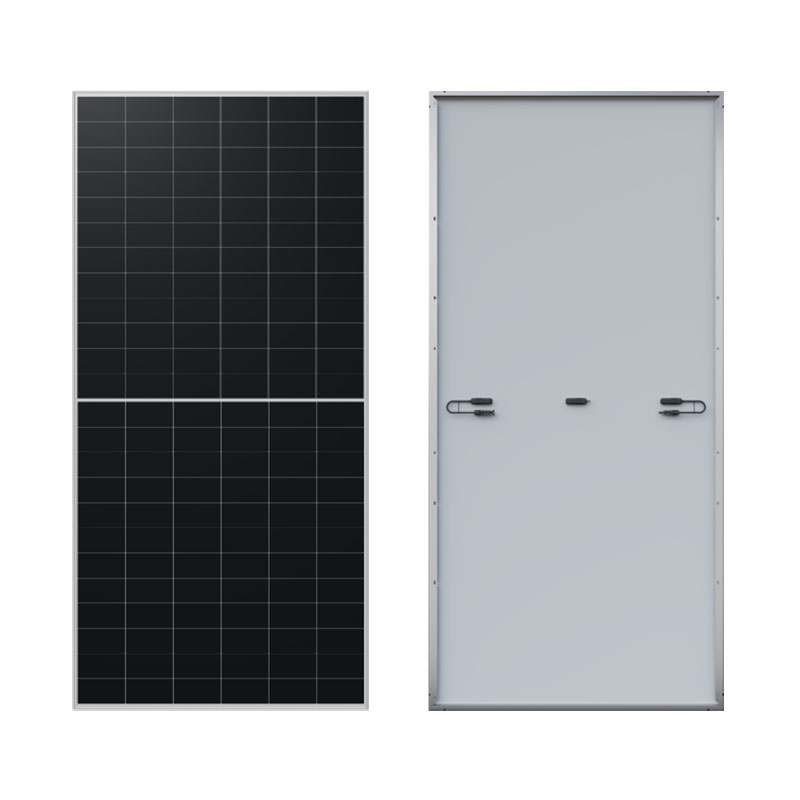

Hi-MO X6 Max Scientist Solar Panels
Hi-MO X6 Max Scientist Solar Panels

Hi-MO X6 Max Scientist Solar Panels

The Hi-MO X6 Max Scientist series delivers peak efficiency, ideal for high-power-demand applications like energy-intensive commercial and industrial systems.

CATEGORY:
Description

Core Advantages

High-efficiency Cells

HPBC cells achieve an efficiency exceeding 23.3%.

Aesthetic Appearance

Hi-MO X6 Max simplifies structural complexity while redefining the aesthetic standards of photovoltaic modules.

Outstanding Performance

The series achieves significantly enhanced power generation through comprehensive upgrades to HPBC cells and modules.

Market-leading Reliability

Hi-MO X6 Max employs pioneering full back welding technology, effectively enhancing module resistance to micro-cracking.


Electrical Performance Parameters of Hi-MO X6 Max Scientist Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version LR7-54HTH

  • LR7-54HTH-470M

    STCNOCT
  • Maximum power (Pmax/W):470351.2
  • Open-circuit voltage (Voc/V):39.7537.32
  • Short circuit current (Isc/A):15.0012.12
  • Peak power voltage (Vmp/V):33.5930.65
  • Peak power current (Imp/A):13.9911.45
  • Module efficiency (%):23

  • LR7-54HTH-475M

    STCNOCT
  • Maximum power (Pmax/W):475354.9
  • Open-circuit voltage (Voc/V):39.9537.51
  • Short circuit current (Isc/A):15.0712.17
  • Peak power voltage (Vmp/V):33.7930.83
  • Peak power current (Imp/A):14.0611.51
  • Module efficiency (%):23.3

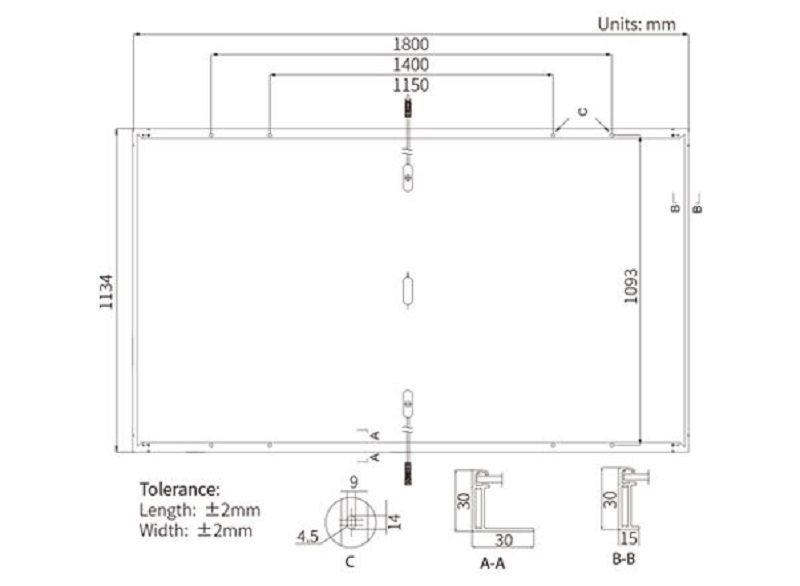

Mechanical Parameters

  • Layout: 108 (6×18)
  • Junction box: Split junction box, IP68
  • Weight: 21.6kg
  • Size: 1800×1134×30mm
  • Packaging: 36 pcs./pallet; 216 pcs./20GP; 864 pcs./40HC;

Version LR7-72HTH

  • LR7-72HTH-620M

    STCNOCT
  • Maximum power (Pmax/W):620463.4
  • Open-circuit voltage (Voc/V):52.7249.59
  • Short circuit current (Isc/A):14.9312.06
  • Peak power voltage (Vmp/V):44.4840.59
  • Peak power current (Imp/A):13.9411.42
  • Module efficiency (%):23

  • LR7-72HTH-625M

    STCNOCT
  • Maximum power (Pmax/W):625467.1
  • Open-circuit voltage (Voc/V):52.8749.64
  • Short circuit current (Isc/A):15.0112.12
  • Peak power voltage (Vmp/V):44.6340.73
  • Peak power current (Imp/A):14.0111.47
  • Module efficiency (%):23.1

  • LR7-72HTH-630M

    STCNOCT
  • Maximum power (Pmax/W):630470.8
  • Open-circuit voltage (Voc/V):53.0249.78
  • Short circuit current (Isc/A):15.0712.17
  • Peak power voltage (Vmp/V):44.7840.87
  • Peak power current (Imp/A):14.0711.52
  • Module efficiency (%):23.3

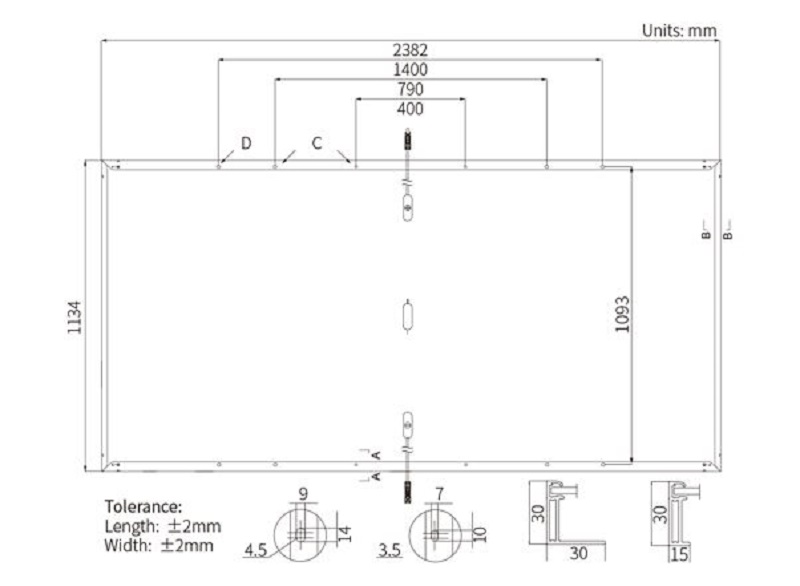

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68
  • Weight: 28.5kg
  • Size: 2382×1134×30mm
  • Packaging: 31 pcs./pallet; 144 pcs./20GP; 720 pcs./40HC;

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.230%/℃
  • Temperature coefficient of peak power (Pmax): -0.290%/℃
