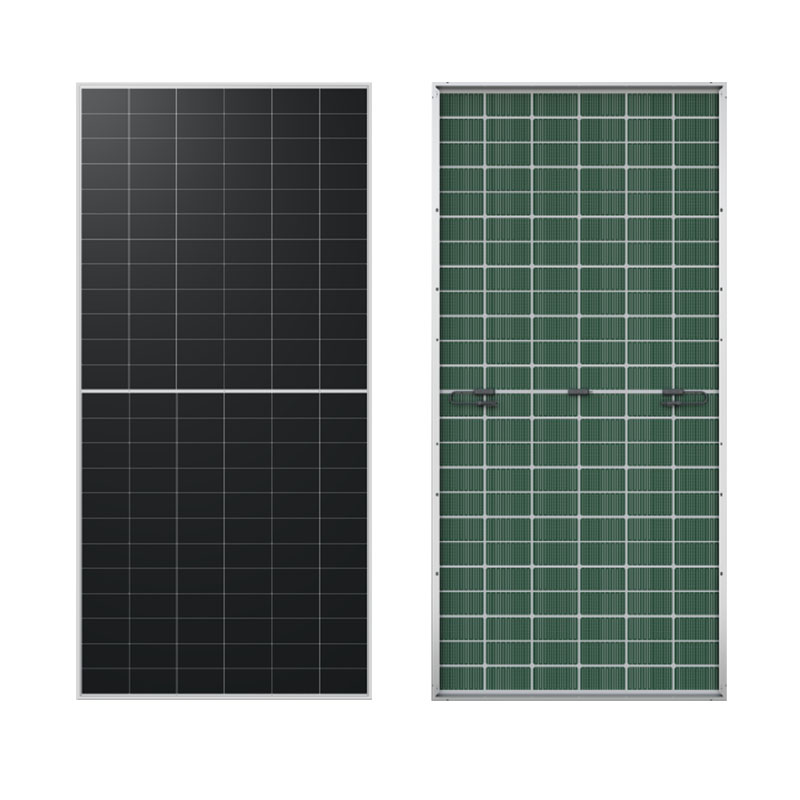

Hi-MO X6 Max Guardian Anti Humidity and Heat Solar Panels
Hi-MO X6 Max Guardian Anti Humidity and Heat Solar Panels

Hi-MO X6 Max Guardian Anti Humidity and Heat Solar Panels

Hi-MO X6 Max Guardian anti humidity & heat solar panels utilize dual glass and POE encapsulation to effectively block moisture ingress.

CATEGORY:
Description

Core Advantages

Advanced Moisture Protection

A cutting-edge triple-layer encapsulation system effectively blocks water penetration, ensuring long-term durability.

Unmatched Dependability

Dual-glass construction with double-sided POE enhances safety and operational stability.

Minimal Performance Loss

Only 0.35% linear power degradation—even better in high-humidity and high-temperature environments.

Superior Energy Output

Delivers higher electricity yield backed by a 30-year performance guarantee.


Electrical Performance Parameters of Hi-MO X6 Max Guardian Anti Humidity and Heat Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

  • LR7-72HTDR-600M

    STCNOCT
  • Maximum power (Pmax/W):600448.3
  • Open-circuit voltage (Voc/V):52.5149.30
  • Short circuit current (Isc/A):14.5511.75
  • Peak power voltage (Vmp/V):44.1940.32
  • Peak power current (Imp/A):13.5811.12
  • Module efficiency (%):22.2

  • LR7-72HTDR-605M

    STCNOCT
  • Maximum power (Pmax/W):605452.0
  • Open-circuit voltage (Voc/V):52.6649.44
  • Short circuit current (Isc/A):14.6211.81
  • Peak power voltage (Vmp/V):44.3340.45
  • Peak power current (Imp/A):13.6511.17
  • Module efficiency (%):22.4

  • LR7-72HTDR-610M

    STCNOCT
  • Maximum power (Pmax/W):610455.8
  • Open-circuit voltage (Voc/V):52.8149.58
  • Short circuit current (Isc/A):14.6911.87
  • Peak power voltage (Vmp/V):44.4840.59
  • Peak power current (Imp/A):13.7211.23
  • Module efficiency (%):22.6

  • LR7-72HTDR-615M

    STCNOCT
  • Maximum power (Pmax/W):615459.5
  • Open-circuit voltage (Voc/V):52.9649.72
  • Short circuit current (Isc/A):14.7511.92
  • Peak power voltage (Vmp/V):44.6340.72
  • Peak power current (Imp/A):13.7811.29
  • Module efficiency (%):22.8

  • LR7-72HTDR-620M

    STCNOCT
  • Maximum power (Pmax/W):620463.3
  • Open-circuit voltage (Voc/V):53.1149.86
  • Short circuit current (Isc/A):14.8211.97
  • Peak power voltage (Vmp/V):44.7840.86
  • Peak power current (Imp/A):13.8511.33
  • Module efficiency (%):23.0

  • LR7-72HTDR-625M

    STCNOCT
  • Maximum power (Pmax/W):625467
  • Open-circuit voltage (Voc/V):53.2650.00
  • Short circuit current (Isc/A):14.9012.04
  • Peak power voltage (Vmp/V):44.9341.00
  • Peak power current (Imp/A):13.9211.40
  • Module efficiency (%):23.1

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.23%/℃
  • Temperature coefficient of peak power (Pmax): -0.28%/℃

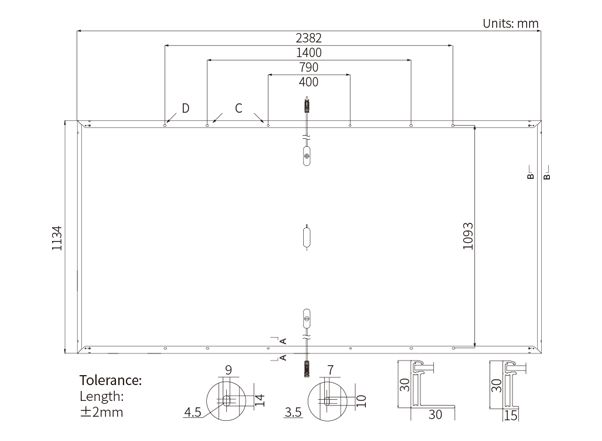

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68
  • Weight: 33.5kg
  • Size: 2382×1134×30mm
  • Packaging: 36 pcs./pallet; 144 pcs./20GP; 720 pcs./40HC;
