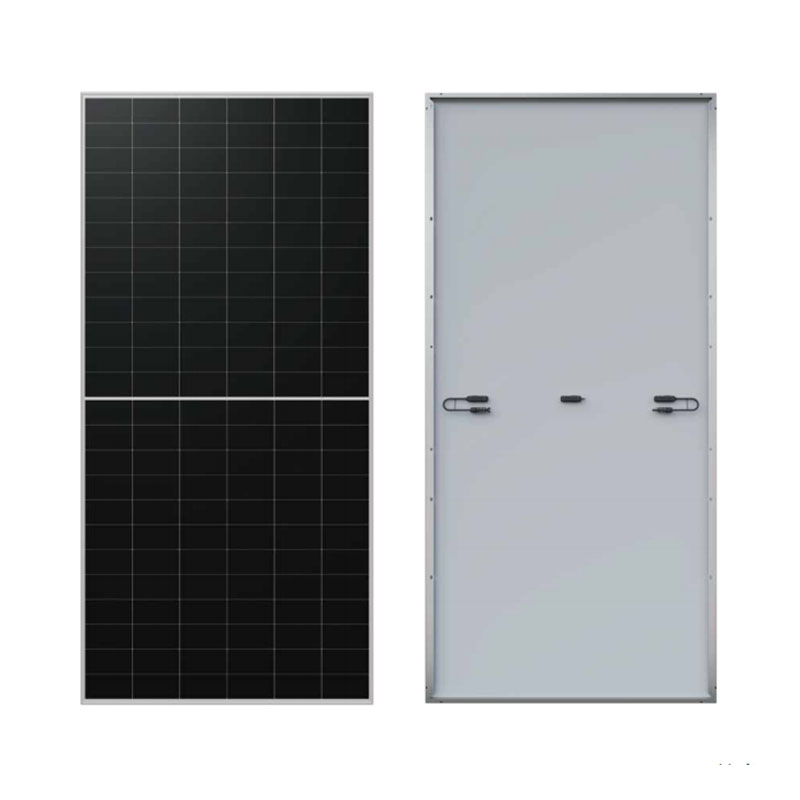

Hi-MO X10 Guardian Anti Dust Series Solar Panels

The Hi-MO X10 Guardian Anti-Dust Series Solar Panels integrate advanced HPBC 2.0 cell technology for exceptional efficiency and durability.

Anti-Dust Frame Design

Unique structural engineering minimizes dust accumulation, maintaining >90% power retention over extended periods and enhancing lifecycle energy yield.

High Reliability in Harsh Environments

Engineered for stable performance under extreme temperatures, humidity, and mechanical stress, with 1% first-year degradation and 0.35% annual power loss.

Optimized for Challenging Installations

Ideal for industrial/commercial corrugated metal rooftops and low-tilt mounting scenarios (as low as 5°), maximizing energy output in space-constrained settings.

Enhanced Power Generation

Proprietary cell architecture and dust-resistant features ensure 6-8% higher annual yield compared to conventional modules in dusty environments.

Electrical Performance Parameters of Hi-MO X10 Guardian Anti dust Series Single Glass Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

Version LR7-72HVHF

• LR7-72HVHF-640M

  STCNOCT
• Maximum power (Pmax/W):640487
• Open-circuit voltage (Voc/V):53.7051.04
• Short circuit current (Isc/A):15.1312.15
• Peak power voltage (Vmp/V):44.3642.15
• Peak power current (Imp/A):14.4311.56
• Module efficiency (%):23.7

• LR7-72HVHF-645M

  STCNOCT
• Maximum power (Pmax/W):645491
• Open-circuit voltage (Voc/V):53.8051.13
• Short circuit current (Isc/A):15.2112.22
• Peak power voltage (Vmp/V):44.4642.25
• Peak power current (Imp/A):14.5111.63
• Module efficiency (%):23.9

• LR7-72HVHF-650M

  STCNOCT
• Maximum power (Pmax/W):650495
• Open-circuit voltage (Voc/V):53.9051.23
• Short circuit current (Isc/A):15.2912.28
• Peak power voltage (Vmp/V):44.5642.35
• Peak power current (Imp/A):14.5911.69
• Module efficiency (%):24.1

• LR7-72HVHF-655M

  STCNOCT
• Maximum power (Pmax/W):655499
• Open-circuit voltage (Voc/V):54.0051.32
• Short circuit current (Isc/A):15.3712.34
• Peak power voltage (Vmp/V):44.6642.44
• Peak power current (Imp/A):14.6711.76
• Module efficiency (%):24.2

• LR7-72HVHF-660M

  STCNOCT
• Maximum power (Pmax/W):660502
• Open-circuit voltage (Voc/V):54.1051.42
• Short circuit current (Isc/A):15.4512.41
• Peak power voltage (Vmp/V):44.7642.54
• Peak power current (Imp/A):14.7511.82
• Module efficiency (%):24.4

• LR7-72HVHF-665M

  STCNOCT
• Maximum power (Pmax/W):665506
• Open-circuit voltage (Voc/V):54.2051.51
• Short circuit current (Isc/A):15.5212.47
• Peak power voltage (Vmp/V):44.8642.63
• Peak power current (Imp/A):14.8311.88
• Module efficiency (%):24.6

• LR7-72HVHF-670M

  STCNOCT
• Maximum power (Pmax/W):670510
• Open-circuit voltage (Voc/V):54.3051.61
• Short circuit current (Isc/A):15.6912.53
• Peak power voltage (Vmp/V):44.9642.73
• Peak power current (Imp/A):14.9111.94
• Module efficiency (%):24.8

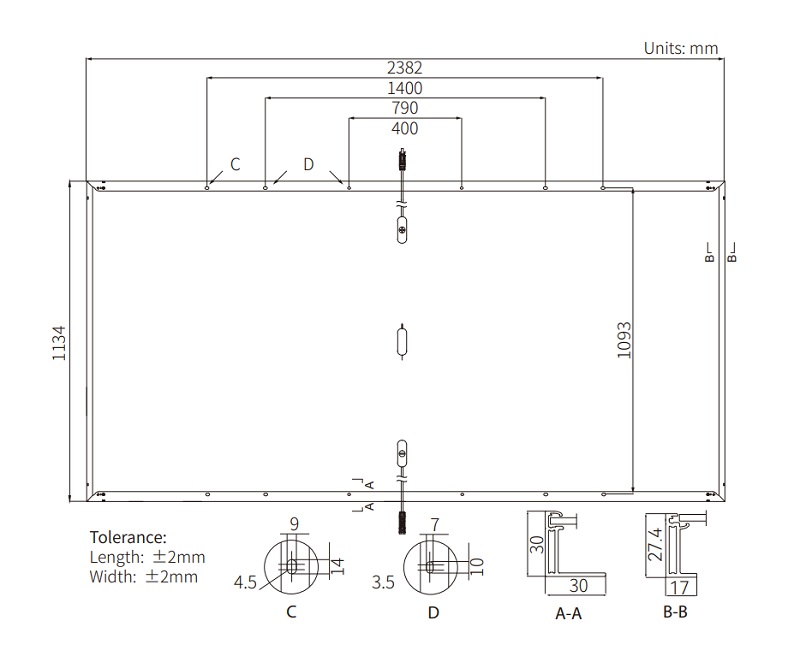

Mechanical Parameters

• Layout: 144 (6×24)
• Junction box: Split junction box, IP68, 3 diodes
• Weight: 28.5kg
• Size: 2382×1134×30mm
• Packaging: 35 pcs./pallet; 140 pcs./20GP; 700 pcs./40HC;
