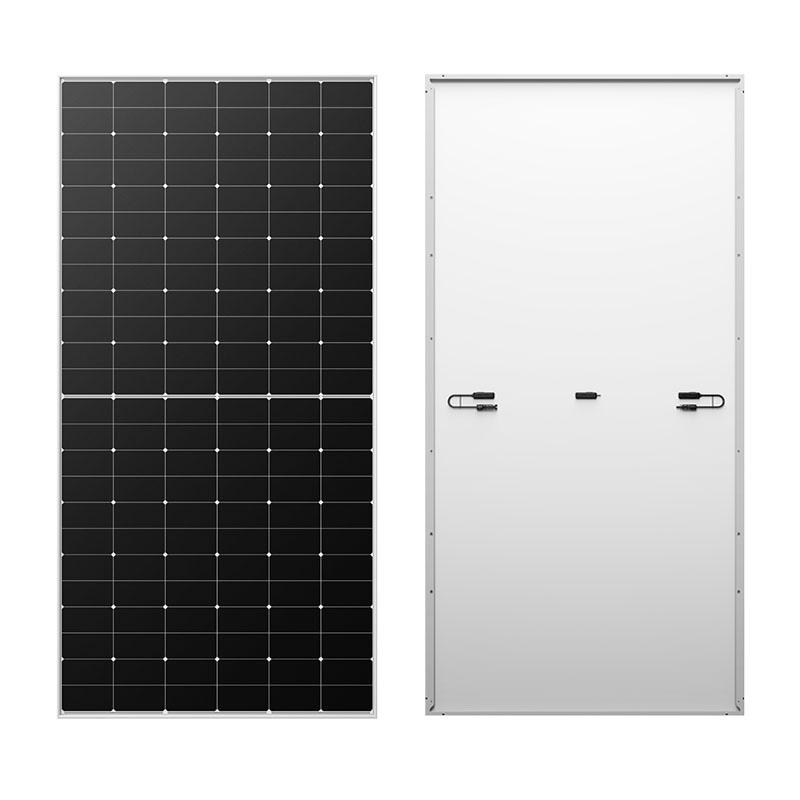

Hi-MO X6 Guardian Anti Dust Solar Panel
Hi-MO X6 Guardian Anti Dust Solar Panel

Hi-MO X6 Guardian Anti Dust Solar Panel

Hi-MO X6 Guardian series anti dust design, a patented reinforced frame and IP68-rated sealing ensure extreme durability in deserts, coasts, and harsh environments.

CATEGORY:
Description

Core Advantages

Self-Cleaning Design

Dust slides off naturally via gravity and rainfall, minimizing energy loss.

Shading Resilience

Advanced design mitigates light obstruction, ensuring stable output in shaded conditions.

Revenue Optimization

Higher energy yield with reduced cleaning frequency, lowering operational costs.

Engineered Durability

Patented frame and precision sealing ensure extreme weather resistance and structural integrity.


Electrical Performance Parameters of Hi-MO X6 Guardian Anti Dust Series Solar Panel Sub-Models Under Two Testing Conditions: STC (Standard Test Conditions) and NOCT (Nominal Operating Cell Temperature).

  • LR5-72HTHF-565M

    STCNOCT
  • Maximum power (Pmax/W):565422
  • Open-circuit voltage (Voc/V):51.7648.60
  • Short circuit current (Isc/A):14.0111.31
  • Peak power voltage (Vmp/V):43.6139.79
  • Peak power current (Imp/A):12.9610.61
  • Module efficiency (%):21.8

  • LR5-72HTHF-570M

    STCNOCT
  • Maximum power (Pmax/W):570426
  • Open-circuit voltage (Voc/V):51.9148.74
  • Short circuit current (Isc/A):14.0711.36
  • Peak power voltage (Vmp/V):43.7639.93
  • Peak power current (Imp/A):13.0310.68
  • Module efficiency (%):22

  • LR5-72HTHF-575M

    STCNOCT
  • Maximum power (Pmax/W):575430
  • Open-circuit voltage (Voc/V):52.0648.88
  • Short circuit current (Isc/A):14.1411.42
  • Peak power voltage (Vmp/V):43.9140.07
  • Peak power current (Imp/A):13.1010.73
  • Module efficiency (%):22.2

  • LR5-72HTHF-580M

    STCNOCT
  • Maximum power (Pmax/W):580433
  • Open-circuit voltage (Voc/V):52.2149.02
  • Short circuit current (Isc/A):14.2011.47
  • Peak power voltage (Vmp/V):44.0640.20
  • Peak power current (Imp/A):13.1710.78
  • Module efficiency (%):22.4

  • LR5-72HTHF-585M

    STCNOCT
  • Maximum power (Pmax/W):585437
  • Open-circuit voltage (Voc/V):52.3649.16
  • Short circuit current (Isc/A):14.2711.52
  • Peak power voltage (Vmp/V):44.2140.34
  • Peak power current (Imp/A):13.2410.84
  • Module efficiency (%):22.6

  • LR5-72HTHF-590M

    STCNOCT
  • Maximum power (Pmax/W):590441
  • Open-circuit voltage (Voc/V):52.5149.30
  • Short circuit current (Isc/A):14.3311.57
  • Peak power voltage (Vmp/V):44.3640.48
  • Peak power current (Imp/A):13.3110.90
  • Module efficiency (%):22.8

  • LR5-72HTHF-595M

    STCNOCT
  • Maximum power (Pmax/W):595445
  • Open-circuit voltage (Voc/V):52.6649.44
  • Short circuit current (Isc/A):14.4011.63
  • Peak power voltage (Vmp/V):44.5140.62
  • Peak power current (Imp/A):13.3710.97
  • Module efficiency (%):23.0

  • LR5-72HTHF-600M

    STCNOCT
  • Maximum power (Pmax/W):600448
  • Open-circuit voltage (Voc/V):52.8149.58
  • Short circuit current (Isc/A):14.4611.68
  • Peak power voltage (Vmp/V):44.6640.75
  • Peak power current (Imp/A):13.4411.00
  • Module efficiency (%):23.2

Load Capacity

  • Maximum static load on the front (such as snow and wind): 5400Pa
  • Maximum static load on the back (such as wind): 2400Pa
  • Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

  • Temperature coefficient of short circuit current (Isc): +0.050%/℃
  • Temperature coefficient of open circuit voltage (Voc): -0.23%/℃
  • Temperature coefficient of peak power (Pmax): -0.29%/℃

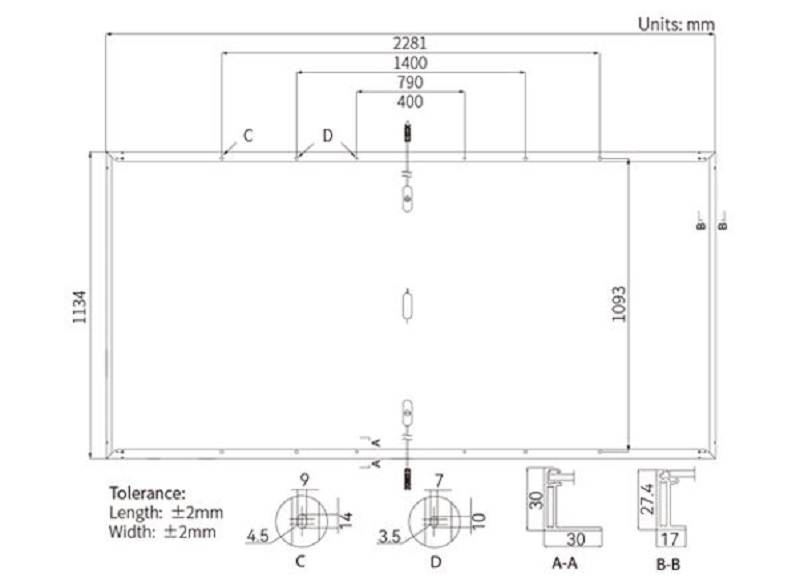

Mechanical Parameters

  • Layout: 144 (6×24)
  • Junction box: Split junction box, IP68, 3 diodes
  • Weight: 27.2kg
  • Size: 2281×1134×30mm
  • Packaging: 35 pcs./pallet; 175 pcs./20GP; 700 pcs./40GP;
